Specifications:
Number of positions:4
Applicable wires:26～22AWG
Temperature range:-25℃～85℃
Voltage rating:250V AC,DC Max.
Current rating:2A AC,DC Max.
Current resistance:≤20M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:800V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

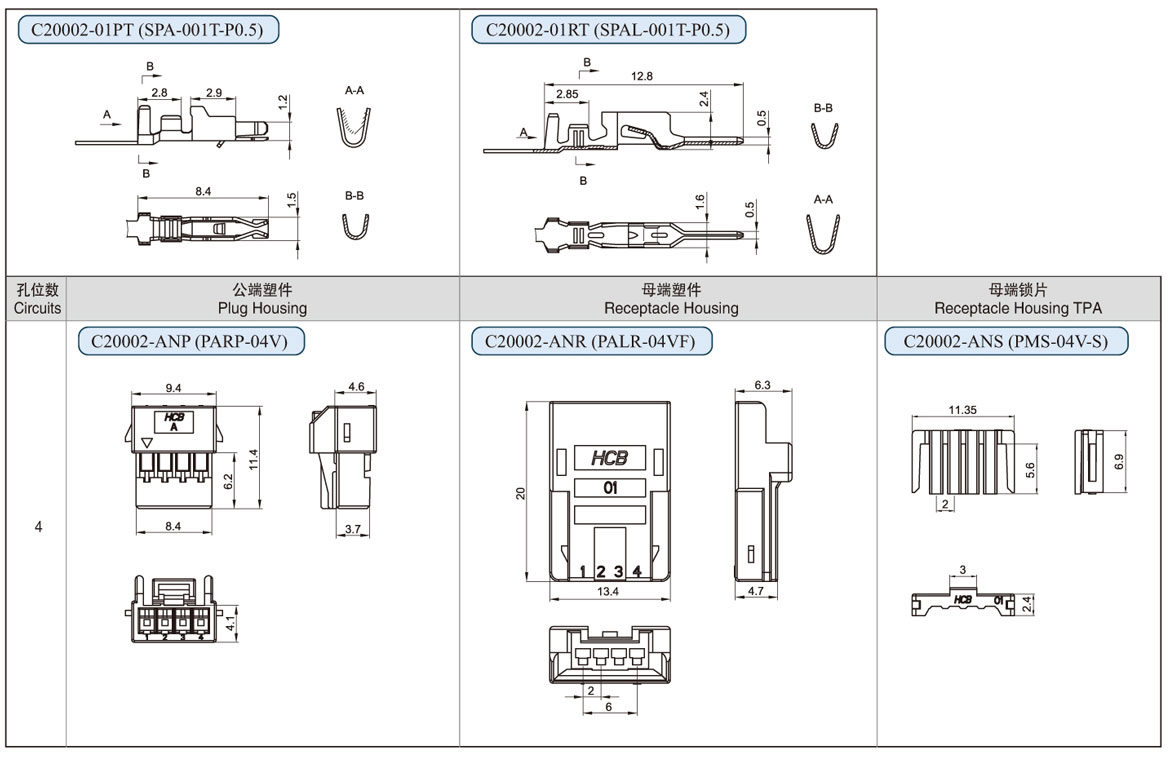

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C20002-01PT | Phosphor Bronze | 0.2 | 26-22 | 0.13-0.33 | 1.3-1.7 | Tin Plated | 10K |
| C20002-01RT | Phosphor Bronze | 0.2 | 26-22 | 0.13-0.33 | 1.3-1.7 | Tin Plated | 10K |
| Prat No. | Material | Q'ty/bag |
| C20002-ANP | PA66 | 1K |
| Prat No. | Material | Q'ty/bag |
| C20002-A04RF | PA66 | 1K |
| Prat No. | Material | Q'ty/bag |
| C20002-A04S | PA66 | 2K |
