SM Series


Update time:2019-06-25 14:05

Specifications:

Number of positions:2~4
Applicable wires:24~20AWG
Temperature range:-25℃~85℃
Voltage rating:250V AC,DC Max.
Current rating:3A AC,DC Max.
Current resistance:≤20M Ω
Insulation resistance:≥800M Ω
Withstanding voltage:1000V AC/minute

*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

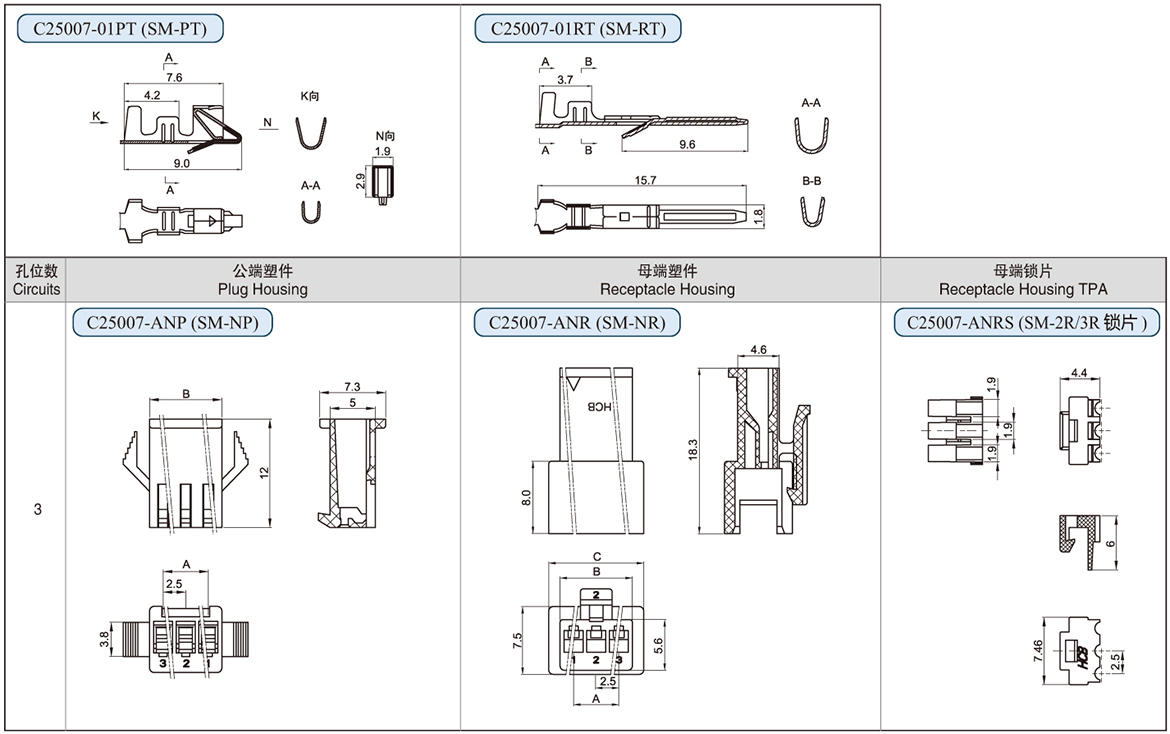

Terminal

Prat No. Material Thickness Applicable Wires Wire insulation
O.D. mm
Plating Q'ty/reel
AWG# mm²
C25007-01PT Phosphor Bronze 0.2 24-20 0.22-0.5 2.1-2.6 Tin Plated 5K
C25007-01RT Phosphor Bronze 0.2 24-20 0.22-0.5 2.1-2.6 Tin Plated 8K



Plug Housing

Prat No. Material Q'ty/bag
C25007-A02P PA66 2K
C25007-A03P 1K
C25007-A04P 1K

Recpetcale Housing

Prat No. Material Q'ty/bag
C25007-A02R PA66 1K
C25007-A03R 1K
C25007-A04R 1K

Receptacle Housing TPA

Prat No. Material Q'ty/bag
C25007-A02RS PA66 2K
C25007-A03RS 2K
C25007-A04RS 2K
