XA Series

Update time:2019-06-25 11:57


Number of positions:6
Applicable wires:26~22AWG
Applicable PC board thickness:1.6mm
Temperature range:-25℃~85℃
Voltage rating:250V AC,DC Max.
Current rating:3A AC,DC Max.
Current resistance:≤20M Ω
Insulation resistance:≥1000M Ω

*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.


Prat No. Material Thickness Applicable Wires Wire insulation
O.D. mm
Plating Q'ty/reel
AWG# mm²

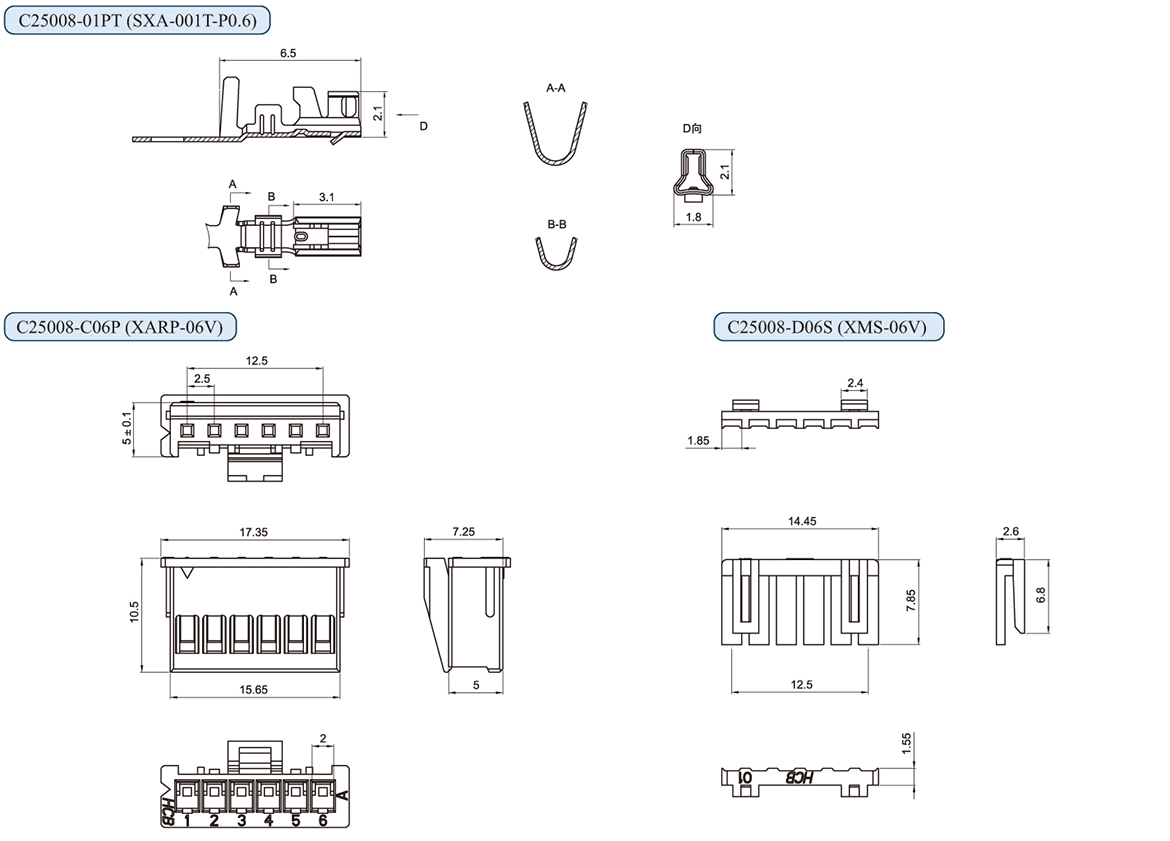

C25008-01PT Phosphor Bronze 0.2 26-22 0.13-0.33 1.3-1.7 Tin Plated 7K

Plug Housing

Prat No. Material Q'ty/bag
C25008-C06P PA66 500

Plug Housing TPA

Prat No. Material Q'ty/bag
C25008-D06S PA66 500
