5264 Series

Update time:2019-06-25 13:19


Number of positions:2~4
Applicable wires:26~22AWG
Temperature range:-25℃~85℃
Voltage rating:250V AC,DC Max.
Current rating:3A AC,DC Max.
Current resistance:≤20M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1000V AC/minute

*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.


Prat No. Material Thickness Applicable Wires Wire insulation
O.D. mm
Plating Q'ty/reel
AWG# mm²

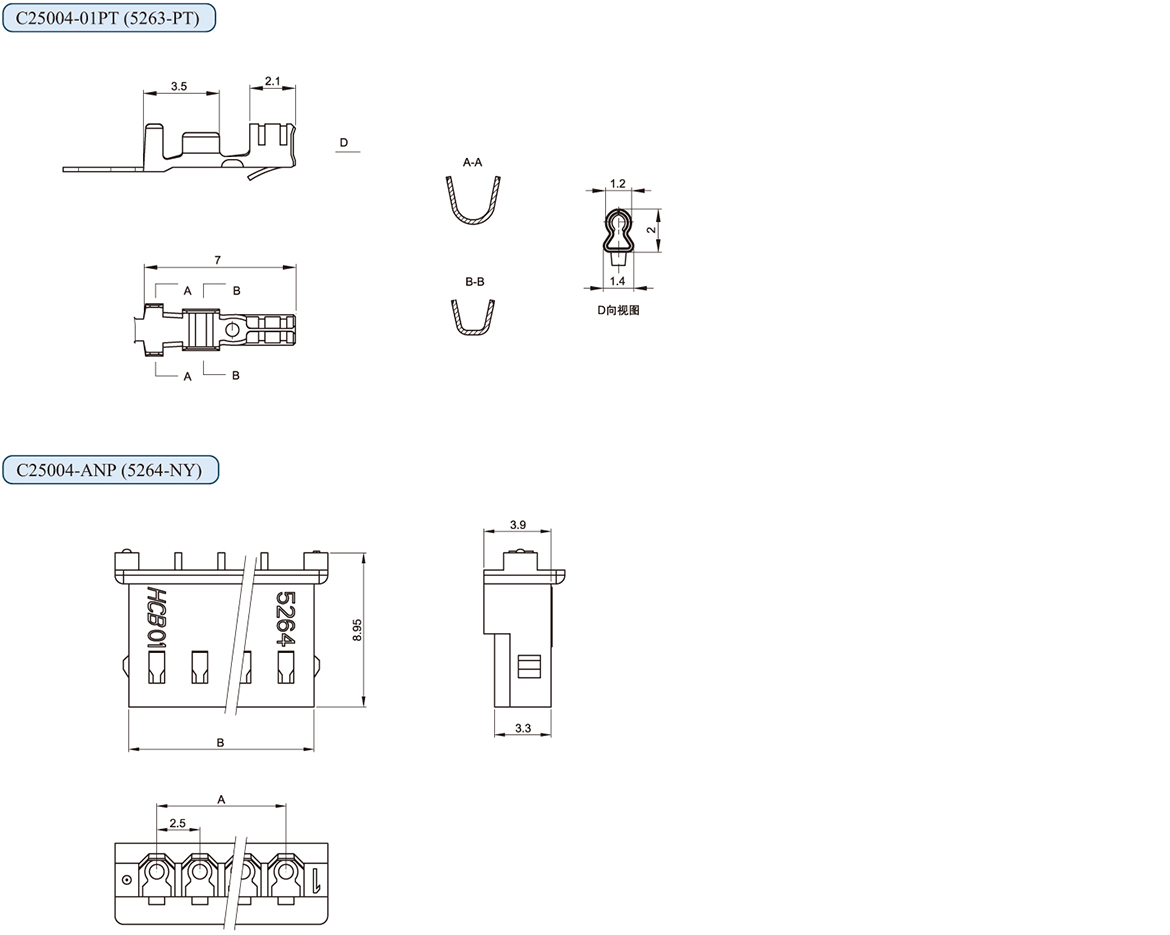

C25004-01PT Phosphor Bronze 0.2 26-22 0.13-0.33 1.3-1.7 Tin Plated

Plug Housing

Prat No. Material Q'ty/bag Dimensions(mm)
C25004-A02P PA66 1K 2.5 5.75
C25004-A03P 1K 5 8.25
C25004-A04P 1K 7.5 10.75
