Update time:2019-06-25 13:16
Specifications:
Number of positions:2～23
Applicable wires:26～22AWG
Temperature range:-25℃～85℃
Voltage rating:250V AC,DC Max.
Current rating:3A AC,DC Max.
Current resistance:≤20M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1000V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

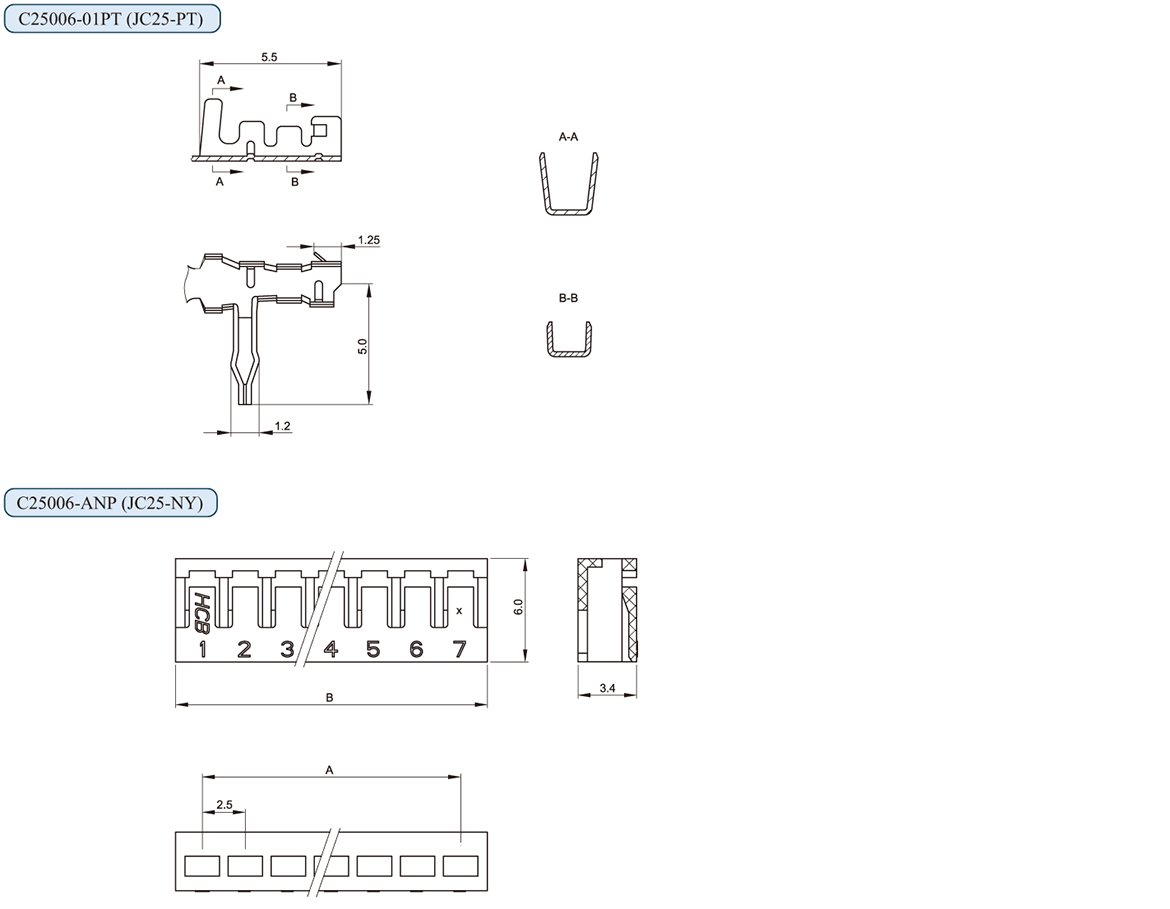

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C25006-01PT | Phosphor Bronze | 0.2 | 26-22 | 0.13-0.33 | 1.3-1.7 | Tin Plated | 8K |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25006-A02P | PA66 | 1K | 2.5 | 5.6 |
| C25006-A03P | 1K | 5 | 8.1 | |
| C25006-A04P | 1K | 7.5 | 10.6 | |
| C25006-A05P | 1K | 10 | 13.1 | |
| C25006-A06P | 1K | 12.5 | 15.6 | |
| C25006-A07P | 1K | 15 | 18.1 | |
| C25006-A08P | 1K | 17.5 | 20.6 | |
| C25006-A09P | 1K | 20 | 23.1 | |
| C25006-A10P | 1K | 22.5 | 25.6 | |
| C25006-A11P | 500 | 25 | 28.1 | |
| C25006-A12P | 500 | 27.5 | 30.6 | |
| …… | …… | …… | …… | |
| C25006-A23P | 500 | 55 | 58.1 | |
