Specifications:
Number of positions:1～4
Applicable wires:24～18AWG
Temperature range:-25℃～85℃
Voltage rating:300V AC,DC Max.
Current rating:8A AC,DC Max.
Current resistance:≤15M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1500V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.
Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C39602-01PT | Phosphor Bronze | 0.25 | 24-20 | 0.22-0.5 | 2.1-2.6 | Tin Plated | 4K |
| C39602-02PT | Phosphor Bronze | 0.25 | 22-18 | 0.33-0.75 | 1.7-2.8 | Tin Plated | 3K |
| C39602-01RT | Phosphor Bronze | 0.25 | 24-20 | 0.22-0.5 | 2.1-2.6 | Tin Plated | 4K |
| C39602-02RT | Phosphor Bronze | 0.25 | 22-18 | 0.33-0.75 | 1.7-2.8 | Tin Plated | 3K |

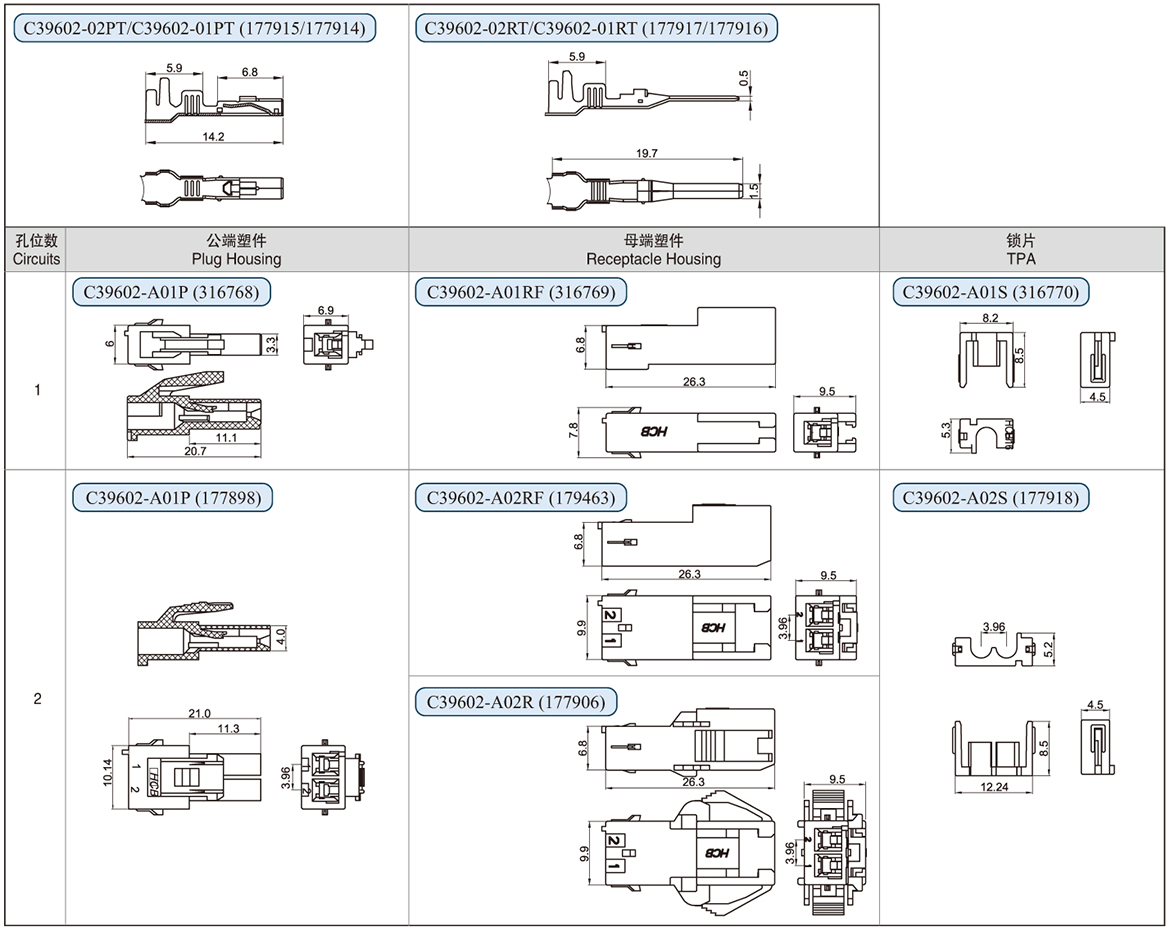

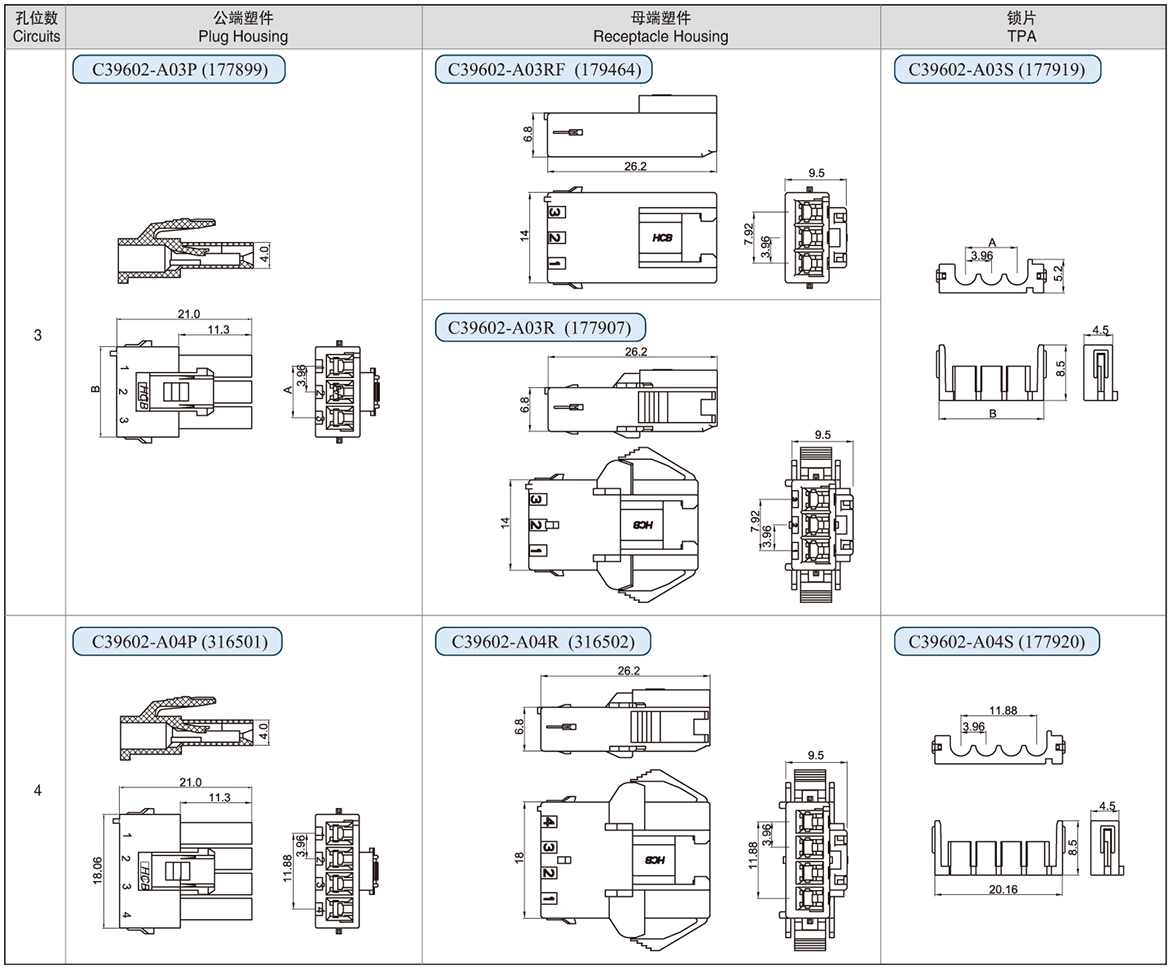

| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C39602-A01P | PA66 | 1K | - | 6.00 |
| C39602-A02P | 1K | 3.96 | 10.14 | |
| C39602-A03P | 1K | 7.92 | 14.10 | |
| C39602-A04P | 1K | 11.88 | 18.06 | |
| Prat No. | Material | Q'ty/bag |
| C39602-A01RF | PA66 | 1K |
| C39602-A02RF | 1K | |
| C39602-A02R | 1K | |
| C39602-A03RF | 1K | |
| C39602-A03R | 1K | |
| C39602-A04R | 1K |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C39602-A01S | PA66 | 2K | - | 8.20 |
| C39602-A02S | 2K | 3.96 | 12.24 | |
| C39602-A03S | 2K | 7.92 | 16.20 | |
| C39602-A04S | 2K | 11.88 | 20.16 | |
