Update time:2019-06-25 11:14
Specifications:
Number of positions:1～4
Applicable wires:26～18AWG
Temperature range:-25℃～85℃
Voltage rating:300V AC,DC Max.
Current rating:7A AC,DC Max.
Current resistance:≤10M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1500V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

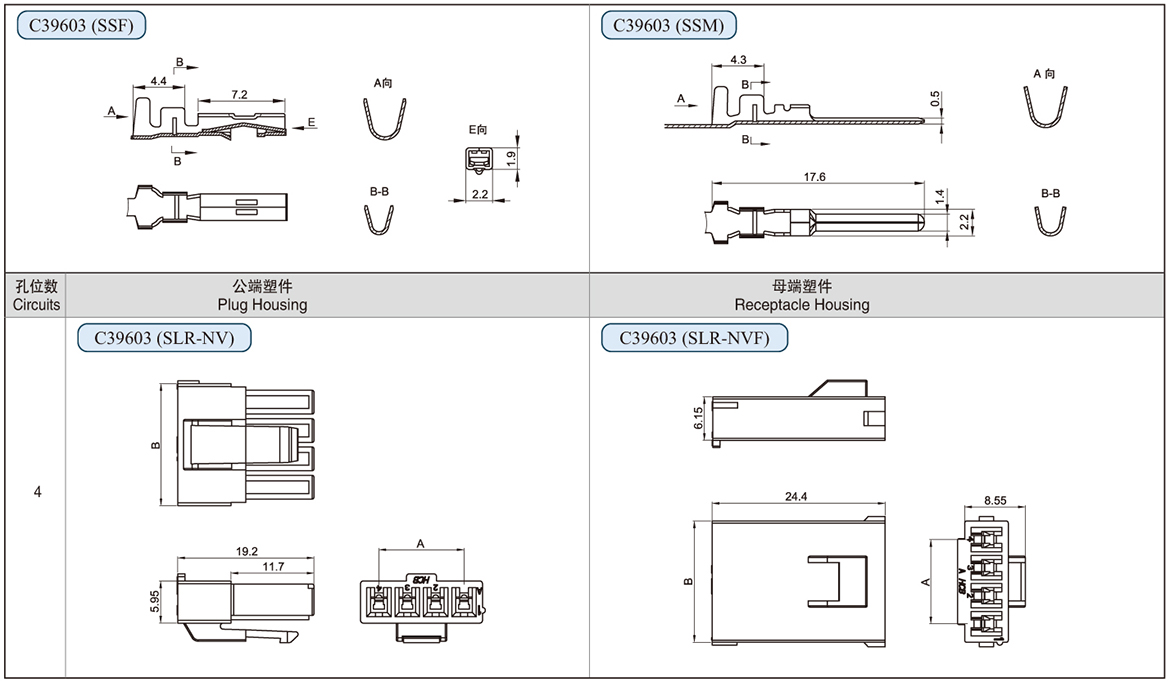

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C39603-01PT | Phosphor Bronze | 0.25 | 26-22 | 0.13-0.33 | 1.3-1.7 | Tin Plated | 5K |
| C39603-02PT | Phosphor Bronze | 0.25 | 22-18 | 0.5-0.75 | 2.6-2.8 | Tin Plated | 5K |
| C39603-01RT | Phosphor Bronze | 0.25 | 26-22 | 0.13-0.33 | 1.3-1.7 | Tin Plated | 5K |
| C39603-02RT | Phosphor Bronze | 0.25 | 20-18 | 0.5-0.75 | 2.6-2.8 | Tin Plated | 5K |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C39603-B01P | PA66 | 1K | - | 5.24 |
| C39603-B02P | 1K | 3.96 | 9.20 | |
| C39603-B03P | 1K | 7.92 | 13.16 | |
| C39603-B04P | 1K | 11.88 | 17.12 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C39603-B01RF | PA66 | 1K | - | 5.24 |
| C39603-B02RF | 1K | 3.96 | 9.20 | |
| C39603-B03RF | 1K | 7.92 | 13.16 | |
| C39603-B04RF | 1K | 11.88 | 17.12 | |
