Update time:2019-06-25 14:00
Specifications:
Number of positions:2～11 *Temperature range:(including temperature rise in applying electrical current)
Applicable wires:22～18AWG
Applicable PC board thickness:1.6mm
Temperature range:-25℃～85℃
Voltage rating:250V AC,DC Max.
Current rating:7.5A AC,DC Max.
Current resistance:≤15M Ω
Insulation resistance:≥1000M Ω
*Compliant with RoHS.

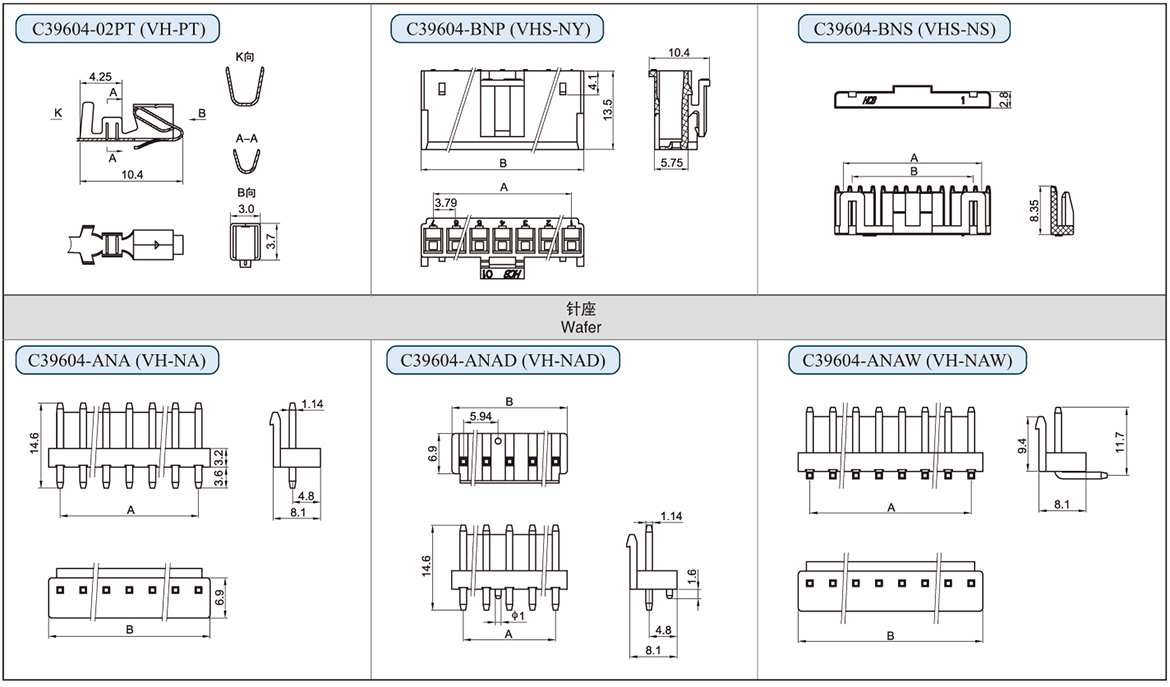

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C39604-02PT | Phosphor Bronze | 0.25 | 22-18 | 0.33-0.75 | 1.7-2.8 | Tin Plated | 2.5K |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C39604-B02P | PA66 | 1K | 3.96 | 7.96 |
| C39604-B03P | 1K | 7.92 | 11.92 | |
| C39604-B04P | 1K | 11.88 | 15.88 | |
| C39604-B05P | 1K | 15.84 | 19.84 | |
| C39604-B06P | 1K | 19.8 | 23.8 | |
| C39604-B07P | 1K | 23.76 | 27.76 | |
| C39604-B08P | 1K | 27.72 | 31.72 | |
| C39604-B09P | 1K | 31.68 | 35.68 | |
| C39604-B10P | 1K | 35.64 | 39.64 | |
| C39604-B11P | 1K | 39.6 | 43.6 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C39604-B02S | PA66 | 2K | 3.96 | - |
| C39604-B03S | 2K | 7.92 | - | |
| C39604-B04S | 2K | 11.88 | - | |
| C39604-B05S | 2K | 15.84 | 12.74 | |
| C39604-B06S | 2K | 19.8 | 16.7 | |
| C39604-B07S | 2K | 23.76 | 20.66 | |
| C39604-B08S | 2K | 27.72 | 24.62 | |
| C39604-B09S | 2K | 31.68 | 28.58 | |
| C39604-B10S | 2K | 35.64 | 32.54 | |
| C39604-B11S | 2K | 39.6 | 36.5 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C39604-A02A | PA66 | 1K | 3.96 | 7.92 |
| C39604-A03A | 1K | 7.92 | 11.88 | |
| C39604-A04A | 1K | 11.88 | 15.84 | |
| C39604-A05A | 1K | 15.84 | 19.8 | |
| C39604-A06A | 1K | 19.8 | 23.76 | |
| C39604-A07A | 1K | 23.76 | 27.72 | |
| C39604-A08A | 1K | 27.72 | 31.68 | |
| C39604-A09A | 500 | 31.68 | 35.64 | |
| C39604-A10A | 500 | 35.64 | 39.6 | |
| C39604-A11A | 500 | 39.6 | 43.56 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C39604-A02AD | PA66 | 1K | 3.96 | 7.92 |
| C39604-A03AD | 1K | 7.92 | 11.88 | |
| C39604-A04AD | 1K | 11.88 | 15.84 | |
| C39604-A05AD | 1K | 15.84 | 19.8 | |
| C39604-A06AD | 1K | 19.8 | 23.76 | |
| C39604-A07AD | 1K | 23.76 | 27.72 | |
| C39604-A08AD | 1K | 27.72 | 31.68 | |
| C39604-A09AD | 500 | 31.68 | 35.64 | |
| C39604-A10AD | 500 | 35.64 | 39.6 | |
| C39604-A11AD | 500 | 39.6 | 43.56 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C39604-A02AW | PA66 | 1K | 3.96 | 7.92 |
| C39604-A03AW | 1K | 7.92 | 11.88 | |
| C39604-A04AW | 1K | 11.88 | 15.84 | |
| C39604-A05AW | 1K | 15.84 | 19.8 | |
| C39604-A06AW | 1K | 19.8 | 23.76 | |
| C39604-A07AW | 1K | 23.76 | 27.72 | |
| C39604-A08AW | 1K | 27.72 | 31.68 | |
| C39604-A09AW | 500 | 31.68 | 35.64 | |
| C39604-A10AW | 500 | 35.64 | 39.6 | |
| C39604-A11AW | 500 | 39.6 | 43.56 | |
| C39604-A12AW | 500 | 43.56 | 47.52 | |
| C39604-A13AW | 500 | 47.52 | 51.48 | |
