5557 & 5559 Series


Update time:2021-12-21 13:15

Specifications:

Number of positions:2~8
Applicable wires:24~20AWG
Temperature range:-25℃~85℃
Voltage rating:300V AC,DC Max.
Current rating:8A AC,DC Max.
Current resistance:≤15M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1500V AC/minute

*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

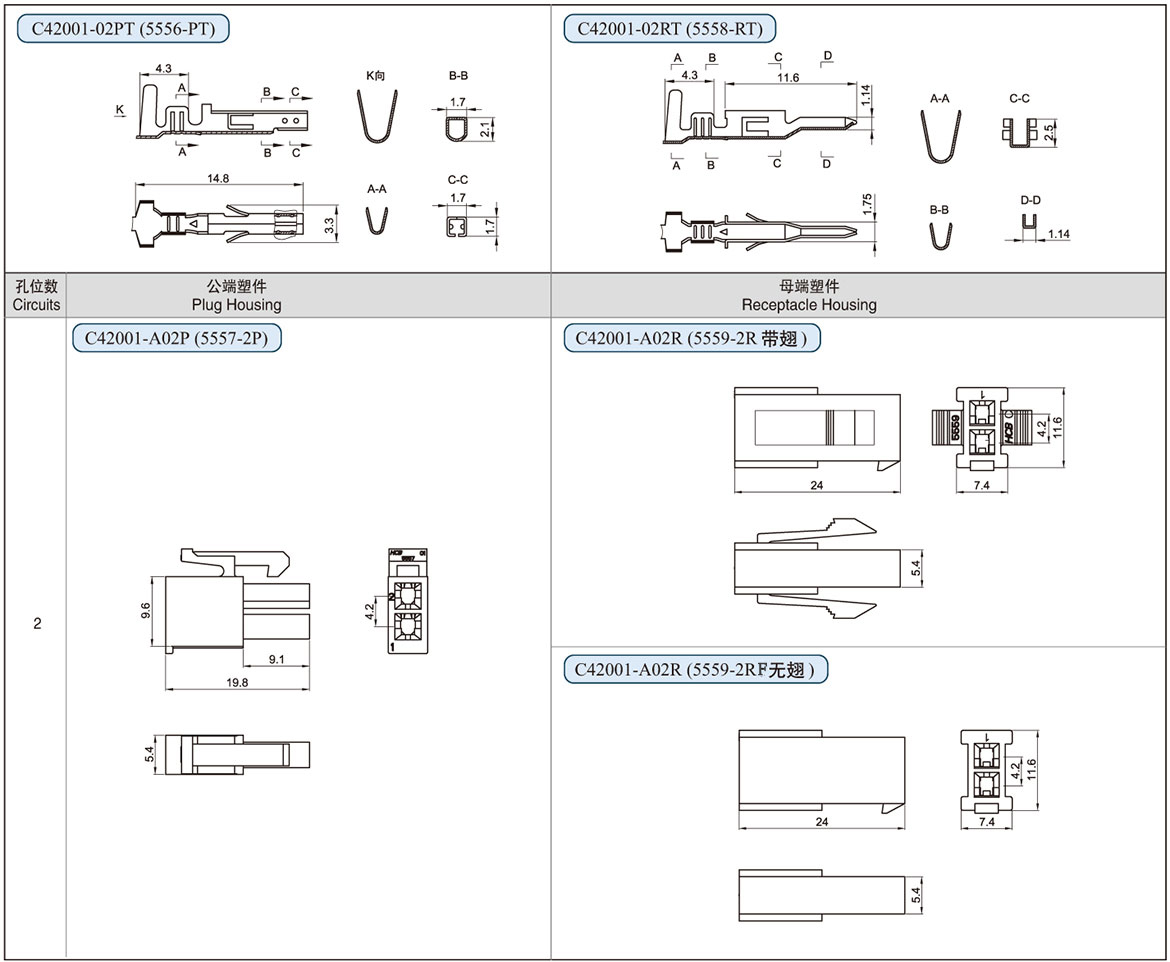

Terminal

Prat No. Material Thickness Applicable Wires Wire insulation
O.D. mm
Plating Q'ty/reel
AWG# mm²
C42001-02PT Phosphor Bronze 0.2 24-20 0.22-0.5 2.1-2.6 Tin Plated 3K
C42001-02RT Phosphor Bronze 0.2 24-20 0.22-0.5 2.1-2.6 Tin Plated 3K





Plug Housing

Prat No. Material Q'ty/bag
C42001-A02P PA66 1K
C42001-A03P 1K
C42001-A04P 1K
C42001-B04P 1K
C42001-A05P 1K
C42001-A06P 500
C42001-A08P 500

Recpetcale Housing

Prat No. Material Q'ty/bag
C42001-A02R PA66 1K
C42001-A02RF 1K
C42001-A03R 1K
C42001-A03RF 1K
C42001-A04R 1K
C42001-B04R 1K
C42001-B0RF 1K
C42001-A05RF 1K
C42001-A06R 500
C42001-A06RF 500
C42001-A08R 500
