4202 Series


Update time:2019-06-25 09:54

Specifications:

Number of positions:2~12
Applicable wires:20~16AWG
Temperature range:-25℃~85℃
Voltage rating:300V AC,DC Max.
Current rating:13A AC,DC Max.
Current resistance:≤10M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1800V AC/minute

*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.


Terminal

Prat No. Material Thickness Applicable Wires Wire insulation
O.D. mm
Plating Q'ty/reel
AWG# mm²
C63501-03PT Phosphor Bronze 0.3 20-16 0.5-1.25 2.6-3.5 Tin Plated 3K
C63501-03RT Phosphor Bronze 0.3 20-16 0.5-1.25 2.6-3.5 Tin Plated 5K

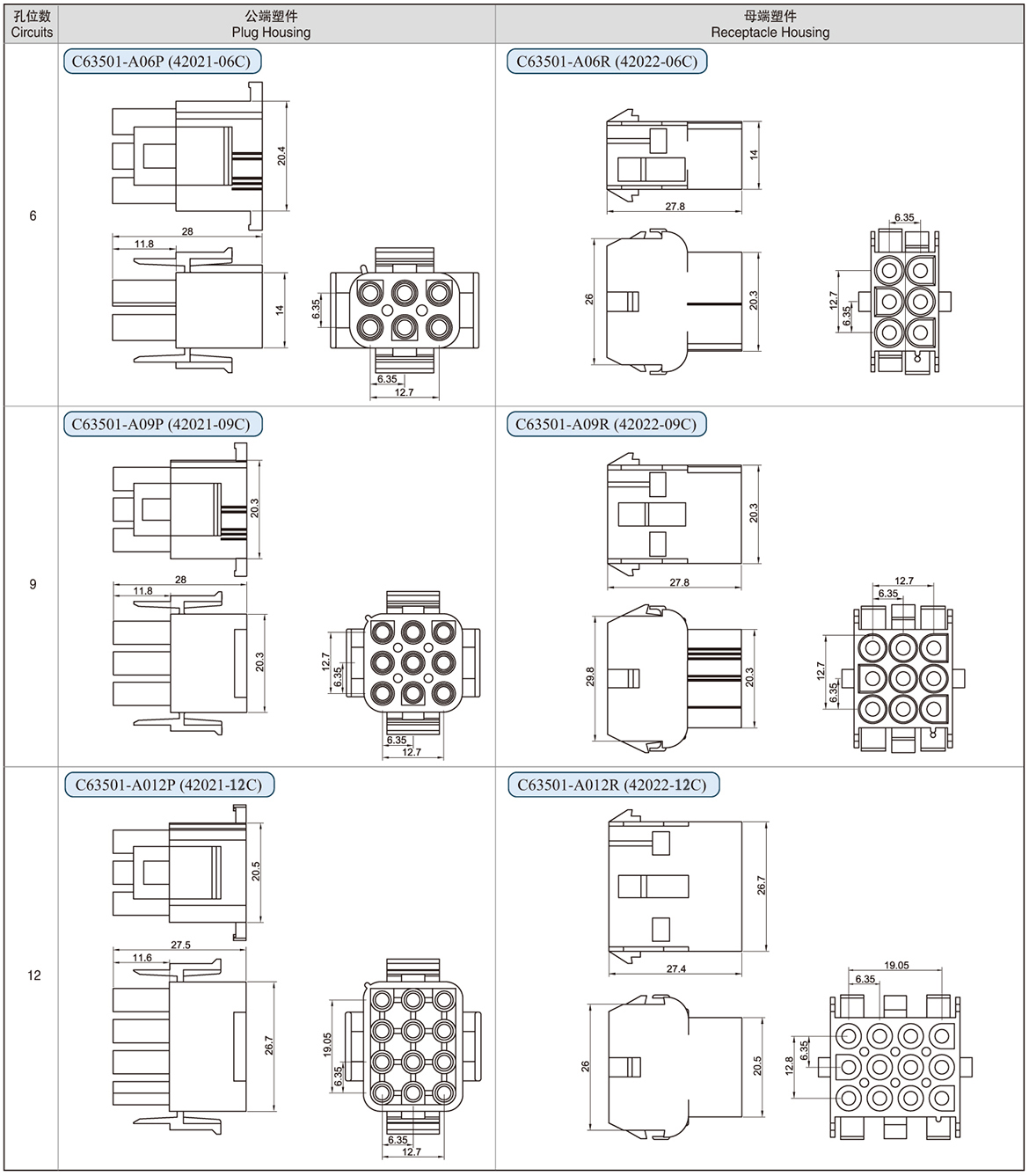

Plug Housing

Prat No. Material Q'ty/bag
C63501-A02P PA66 500
C63501-A04P 200
C63501-A06P 200
C63001-A09P 200
C63001-A12P 200

Recpetcale Housing

Prat No. Material Q'ty/bag
C63501-A02R PA66 500
C63501-A04R 200
C63501-A06R 200
C63501-A09R 200
C63501-A12R 200
