Update time:2019-06-25 13:52
Specifications:
Number of positions:2
Applicable wires:20～16AWG
Temperature range:-25℃～85℃
Voltage rating:300V AC,DC Max.
Current rating:15A AC,DC Max.
Current resistance:≤10M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1800V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

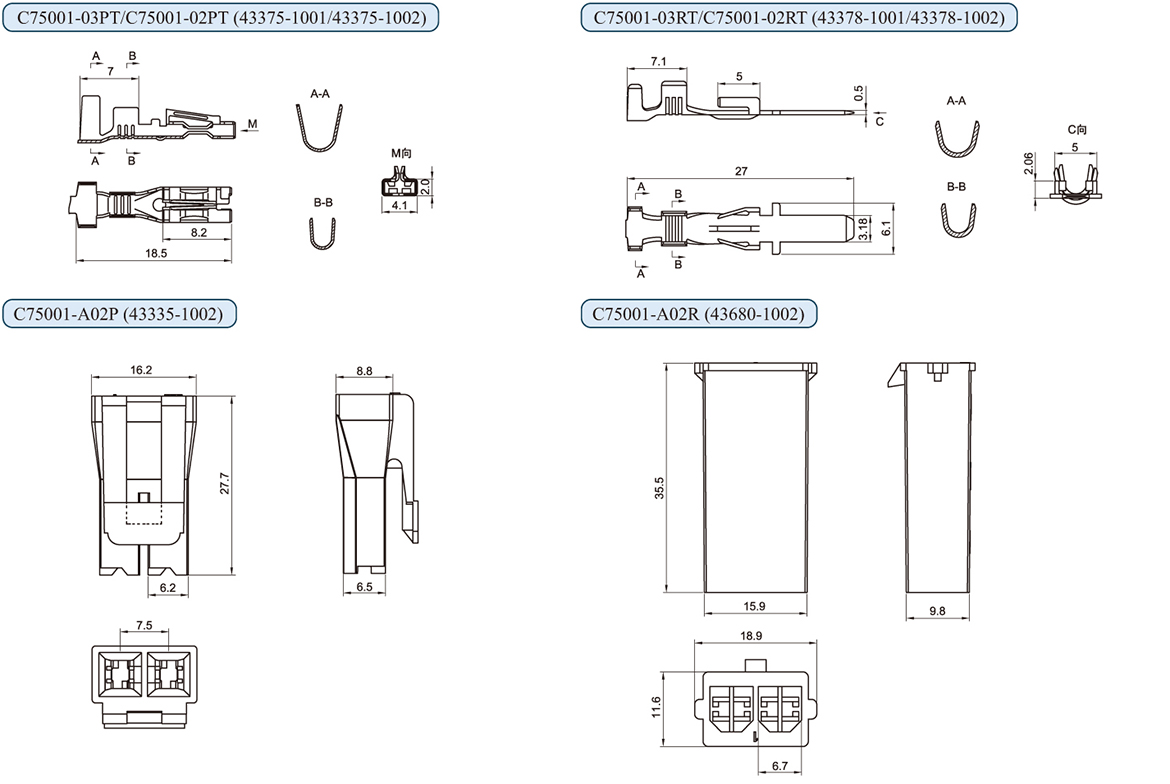

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C75001-02PT | Brass | 0.25 | 20-18 | 0.5-0.75 | 2.5-2.8 | Tin Plated | 3.5K |
| C75001-03PT | Brass | 0.25 | 18-16 | 0.75-1.25 | 2.8-3.5 | Tin Plated | 2.5K |
| C75001-03RT | Brass | 0.5 | 18-16 | 0.75-1.25 | 2.5-2.8 | Tin Plated | 3.5K |
| C75001-04RT | Brass | 0.5 | 16-14 | 1.25-2.5 | 2.8-3.5 | Tin Plated | 2.5K |
| Prat No. | Material | Q'ty/bag |
| C75001-A02P | PA66 | 1K |
| Prat No. | Material | Q'ty/bag |
| C75001-A02R | PA66 | 1K |
