Specifications:
Number of positions:3
Applicable wires:20～14AWG
Temperature range:-25℃～105℃
Voltage rating:300V AC,DC Max.
Current rating:20A AC,DC Max.
Current resistance:≤10M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:2000V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

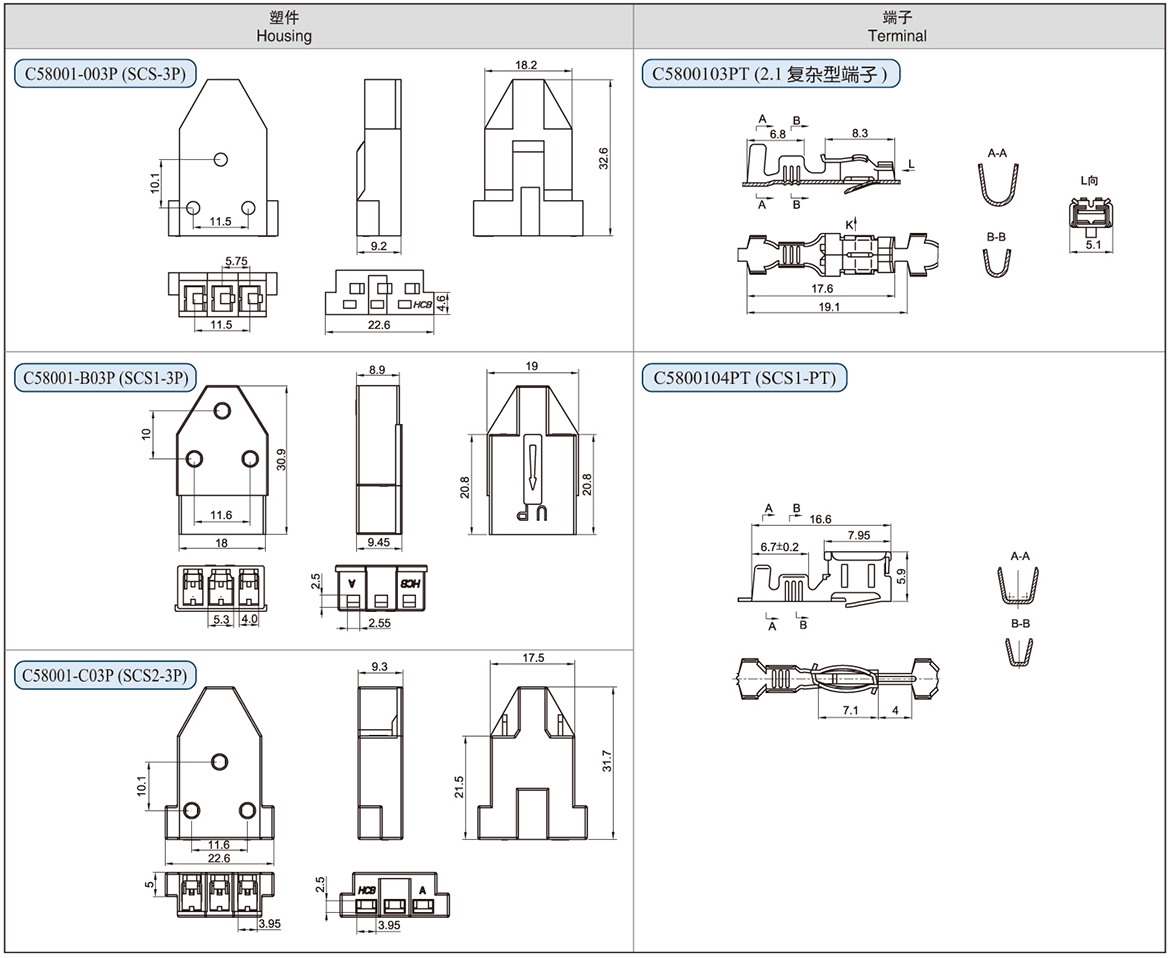

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C58001-03PT | Phosphor Bronze | 0.4 | 18-16 | 0.75-1.25 | 2.8-3.5 | Tin Plated | 8K |
| C58001-04PT | Phosphor Bronze | 0.4 | 16-14 | 1.25-2.5 | 3.5-4.0 | Tin Plated | 8K |
| C58001-12PT | Phosphor Bronze | 0.4 | 20-18 | 0.5-0.75 | 2.6-2.8 | Tin Plated | 8K |
| Prat No. | Material | Q'ty/bag |
| C58001-A03P | PA66 | 500 |
| C58001-B03P | 500 | |
| C58001-C03P | 500 |
