Bullet Terminal Series


Update time:2019-05-14 08:34

Specifications:

nothing

*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.



Bullet terminal series

Part No. Material Thickness Applicable wires Wire insulation
O.D. mm

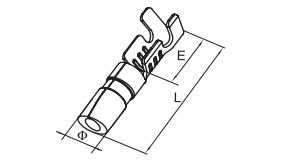

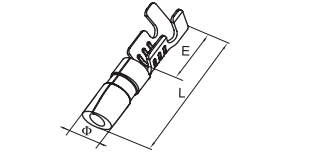

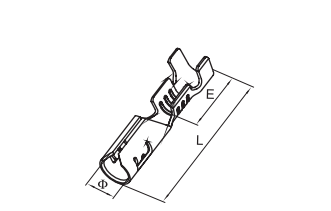

Dimensions(mm)

Plating

Mating Tab Q'ty/reel
AWG# mm²

Φ

L E
TP350P-0102 Brass 0.35 20-16 0.5-1.25 2.6-3.5 3.40 17.60 7.40 Tin-Plated 10K
TP350R-0102 Brass 0.40 20-16 0.5-1.25 2.6-3.5 3.50 16.10 7.20 Tin-Plated 10K
TP400P-0102 Brass 0.40 18-16 0.75-1.25 2.8-3.5 4.00 17.60 7.20 Tin-Plated 10K
TP400R-0102 Brass 0.40 18-16 0.75-1.25 2.8-3.5 4.00 17.80 7.20 Tin-Plated 10K
