Ring Tongue Terminal Series


Update time:2019-06-19 15:59

Specifications:

nothing

*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

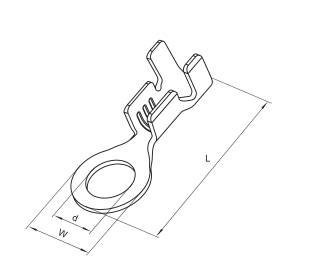

■Ring tongue terminal

Part No. Material Thickness Applicable wires Wire insulation
O.D. mm		 Dimensions（mm） Q'ty/reel
AWG# mm² d W L
TO2200-0102 Brass 0.50 22-18 0.33-0.75 1.7-2.8

2.10

 4.75 13.60 10K
TO2500-0102 Brass 0.40 20-18 0.5-0.75 2.6-2.8 2.50 4.80 13.50 10K
TO2500-0201 Brass 0.40 26-22 0.13-0.33 1.3-1.7 2.50 4.80 11.70 10K
TO3200-0102 Brass 0.40 20-18 0.5-0.75 2.6-2.8 3.20 6.50 15.85 10K
TO3200-0302 Brass 0.40 20-16 0.5-1.25 2.6-3.5 3.20 6.00 12.00 15K
TO3200-0103 Brass 0.40 18-16 0.75-1.25 2.8-3.5 3.20 6.50 16.35 10K
TO3200-0502 Brass 0.50 22-20 0.33-0.5 1.7-2.6 3.20 6.00 13.90 15K
TO3200-0602 Brass 0.50 20-16 0.5-1.25 2.6-3.5 3.20 6.20 14.90 10K
TO3200-0702 Brass 0.50 20-18 0.5-0.75 2.5-2.8 3.20 6.50 16.55 10K
TO3200-0203 Brass 0.50 20-16 0.5-1.25 2.8-3.5 3.20 6.50 16.55 10K
TO3200-0703 Brass 0.50 18-14 0.75-2.5 2.8-4.0 3.20 6.50 16.55 10K
TO3200-0802 Brass 0.50 20-16 0.5-1.25 2.6-3.5 3.20 7.20 16.60 10K
TO3200-0803 Brass 0.50 18-16 0.75-1.25 2.8-3.5 3.20 7.20 16.60 8K
TO3200-0401 Brass 0.40 24-22 0.22-0.33 1.5-1.7 3.30 6.00 14.50 5K
TO3700-0102 Brass 0.50 20-16 0.5-1.25 2.6-3.5 3.70 7.20 16.60 10K
TO4200-1702 Brass 0.40 20-18 0.5-0.75 2.6-2.8 4.20 7.50 16.90 10K
TO4200-2404 Brass 0.40 16-14 1.25-2.5 3.5-4.0 4.20 7.50 17.00 8K
TO4200-0602 Brass 0.50 20-18 0.5-0.75 2.6-2.8 4.20 6.90 16.80 10K
TO4200-0202 Brass 0.50 20-16 0.5-1.25 2.6-3.5 4.20 7.50 17.80 10K
TO4200-0402 Brass 0.50 20-16 0.5-1.25 2.6-3.5 4.20 7.50 16.90 10K
TO4200-0203 Brass 0.50 18-16 0.75-1.25 2.8-3.5 4.20 7.50 16.30 8K
TO4200-0303 Brass 0.50 18-16 0.75-1.25 2.8-3.5 4.20 7.50 18.00 8K
TO4200-0503 Brass 0.50 18-16 0.75-1.25 2.8-3.5 4.20 7.50 14.60 8K
TO4200-0504 Brass 0.50 16-14 1.25-2.5 3.5-4.0 4.20 7.50 14.60 8K
TO4200-1604 Brass 0.50 16-14 1.25-2.5 3.5-4.0 4.20 7.50 16.20 8K
TO4200-1204 Brass 0.50 16-14 1.25-2.5 3.5-4.0 4.20 8.40 18.90 8K
TO4200-1104 Brass 0.60 18-14 0.75-2.5 2.8-4.0 4.20 6.50 16.90 6K
TO4200-0802 Brass 0.60 18-16 0.72-1.25 2.8-3.5 4.20 6.90 16.50 10K
TO4200-0804 Brass 0.60 16-14 1.25-2.5 3.5-4.0 4.20 6.90 16.00 8K
TO4200-1503 Brass 0.60 20-16 0.5-1.25 2.6-3.5 4.20 7.50 17.85 10K
TO4200-2303 Brass 0.60 18-16 0.75-1.25 2.8-3.5 4.30 7.40 17.00 10K
TO4200-0903 Brass 0.60 18-14 0.75-2.5 2.8-4.0 4.20 7.50 17.00 8K
TO4200-1905 Brass 0.80 14-12 2.5-3.5 4.0-5.26 4.30 7.60 19.80 5K
TO4200-0704 Brass 0.80 16-14 1.25-2.5 3.5-4.0 4.20 7.60 19.80 5K
TO4200-1803 Brass 0.80 18-14 0.75-2.5 2.8-4.0 4.20 7.70 19.85 5K
TO4200-0103 Brass 0.80 16-14 1.25-2.5 3.5-4.0 4.30 8.00 21.00 5K
TO5200-0303 Brass 0.50 18-16 0.75-1.25 2.8-3.5 5.10 7.50 16.75 8K
TO5200-0401 Brass 0.50 24-22 0.22-0.33 1.5-1.7 5.20 8.00 17.00 5K
TO5200-1204 Brass 0.50 16-14 1.25-2.5 3.5-4.0 5.40 8.40 19.00 8K
TO5200-1102 Brass 0.50 20-16 0.5-1.25 2.6-3.5 5.20 8.50 19.20 8K
TO5200-0203 Brass 0.50 18-16 0.75-1.25 2.8-3.5 5.20 8.40 19.15 8K
TO5200-0204 Brass 0.50 16-14 1.25-2.5 3.5-4.0 5.20 8.50 19.20 8K
TO5200-0803 Brass 0.50 18-16 0.75-1.25 2.8-3.5 5.30 8.50 19.25 5K
TO5200-1603 Brass 0.60 18-16 0.75-1.25 2.8-3.5 5.20 10.00 21.90 5K
TO5200-1503 Brass 0.50 18-16 0.75-1.25 2.8-3.5 5.20 10.00 21.90 5K
TO5200-1303 Brass 0.80 18-16 0.75-1.25 2.8-3.5 5.20 8.50 19.20 5K
TO5200-0705 Brass 0.80 12-10 3.5-5.26 4.0-5.5 5.20 9.30 23.70 4K
TO5200-1404 Brass 0.50 18-14 0.75-2.5 2.8-4.0 5.20 10.10 22.15 5K
TO5200-0104 Brass 1.00 14-12 2.5-3.5 4.0-5.26 5.30 8.10 17.85 5K
TO5200-0603 Brass 0.50 18-16 0.75-1.25 2.8-3.5 5.30 8.50 19.00 5K
TO5200-0604 Brass 0.50 16-14 1.25-2.5 3.5-4.0 5.30 8.50 19.00 5K
TO5200-1004 Brass 0.60 14-12 2.5-3.5 4.0-5.26 5.40 9.50 20.70 4K
TO6000-0102 Brass 0.40 20-16 0.5-1.25 2.6-3.5 6.20 10.00 19.80 7K
TO6200-0203 Brass 0.60 18-16 0.75-1.25 2.8-3.5 6.40 12.00 23.00 5K
TO6200-0101 Brass 0.40 24-20 0.22-0.5 2.1-2.6 6.20 10.00 19.80 7K
TO6400-0203 Brass 0.50 18-16 0.75-1.25 2.8-3.5 6.40 12.10 23.00 5K
TO6400-0103 Brass 0.50 18-16 0.75-1.25 2.8-3.5 6.40 9.60 19.90 5K
TO8400-0104 Brass 0.60 16-14 1.25-2.5 3.5-4.0 8.40 14.50 24.30 5K
TO8400-0103 Brass 1.00 18-16 0.75-1.25 2.8-3.5 8.50 17.60 32.40 1K/bag
TO8400-0102 Brass 0.40 22-18 0.33-0.75 1.7-2.8 10.30 14.00 23.00 5K
TO5200-0401 Brass 0.50 24-22 0.22-0.33 1.5-1.7 5.20 8.00 17.00 5K
TO5200-1204 Brass 0.50 16-14 1.25-2.5 3.5-4.0 5.40 8.40 19.00 8K
TO5200-1102 Brass 0.50 20-16 0.5-1.25 2.6-3.5 5.20 8.50 19.20 8K
TO5200-0203 Brass 0.50 18-16 0.75-1.25 2.8-3.5 5.20 8.40 19.15 8K
TO5200-0204 Brass 0.50 16-14 1.25-2.5 3.5-4.0 5.20 8.50 19.20 8K
TO5200-0803 Brass 0.50 18-16 0.75-1.25 2.8-3.5 5.30 8.50 19.25 5K
TO5200-1603 Brass 0.60 18-16 0.75-1.25 2.8-3.5 5.20 10.00 21.90 5K
TO5200-1503 Brass 0.50 18-16 0.75-1.25 2.8-3.5 5.20 10.00 21.90 5K
TO5200-1303 Brass 0.80 18-16 0.75-1.25 2.8-3.5 5.20 8.50 19.20 5K
TO5200-0705 Brass 0.80 12-10 3.5-5.26 4.0-5.5 5.20 9.30 23.70 4K
TO5200-1404 Brass 0.50 18-14 0.75-2.5 2.8-4.0 5.20 10.10 22.15 5K
TO5200-0104 Brass 1.00 14-12 2.5-3.5 4.0-5.26 5.30 8.10 17.85 5K
TO5200-0603 Brass 0.50 18-16 0.75-1.25 2.8-3.5 5.30 8.50 19.00 5K
TO5200-0604 Brass 0.50 16-14 1.25-2.5 3.5-4.0 5.30 8.50 19.00 5K
TO5200-1004 Brass 0.60 14-12 2.5-3.5 4.0-5.26 5.40 9.50 20.70 4K
TO6000-0102 Brass 0.40 20-16 0.5-1.25 2.6-3.5 6.20 10.00 19.80 7K
TO6200-0203 Brass 0.60 18-16 0.75-1.25 2.8-3.5 6.40 12.00 23.00 5K
TO6200-0101 Brass 0.40 24-20 0.22-0.5 2.1-2.6 6.20 10.00 19.80 7K
TO6400-0203 Brass 0.50 18-16 0.75-1.25 2.8-3.5 6.40 12.10 23.00 5K
TO6400-0103 Brass 0.50 18-16 0.75-1.25 2.8-3.5 6.40 9.60 19.90 5K
TO8400-0104 Brass 0.60 16-14 1.25-2.5 3.5-4.0 8.40 14.50 24.30 5K
TO8400-0103 Brass 1.00 18-16 0.75-1.25 2.8-3.5 8.50 17.60 32.40 1K/bag
TO8400-0102 Brass 0.40 22-18 0.33-0.75 1.7-2.8 10.30 14.00 23.00 5K
TO5200-0401 Brass 0.50 24-22 0.22-0.33 1.5-1.7 5.20 8.00 17.00 5K
TO5200-1204 Brass 0.50 16-14 1.25-2.5 3.5-4.0 5.40 8.40 19.00 8K
TO5200-1102 Brass 0.50 20-16 0.5-1.25 2.6-3.5 5.20 8.50 19.20 8K
TO5200-0203 Brass 0.50 18-16 0.75-1.25 2.8-3.5 5.20 8.40 19.15 8K
TO5200-0204 Brass 0.50 16-14 1.25-2.5 3.5-4.0 5.20 8.50 19.20 8K
TO5200-0803 Brass 0.50 18-16 0.75-1.25 2.8-3.5 5.30 8.50 19.25 5K
TO5200-1603 Brass 0.60 18-16 0.75-1.25 2.8-3.5 5.20 10.00 21.90 5K
TO5200-1503 Brass 0.50 18-16 0.75-1.25 2.8-3.5 5.20 10.00 21.90 5K
TO5200-1303 Brass 0.80 18-16 0.75-1.25 2.8-3.5 5.20 8.50 19.20 5K
TO5200-0705 Brass 0.80 12-10 3.5-5.26 4.0-5.5 5.20 9.30 23.70 4K
TO5200-1404 Brass 0.50 18-14 0.75-2.5 2.8-4.0 5.20 10.10 22.15 5K
TO5200-0104 Brass 1.00 14-12 2.5-3.5 4.0-5.26 5.30 8.10 17.85 5K
TO5200-0603 Brass 0.50 18-16 0.75-1.25 2.8-3.5 5.30 8.50 19.00 5K
TO5200-0604 Brass 0.50 16-14 1.25-2.5 3.5-4.0 5.30 8.50 19.00 5K
TO5200-1004 Brass 0.60 14-12 2.5-3.5 4.0-5.26 5.40 9.50 20.70 4K
TO6000-0102 Brass 0.40 20-16 0.5-1.25 2.6-3.5 6.20 10.00 19.80 7K
TO6200-0203 Brass 0.60 18-16 0.75-1.25 2.8-3.5 6.40 12.00 23.00 5K
TO6200-0101 Brass 0.40 24-20 0.22-0.5 2.1-2.6 6.20 10.00 19.80 7K
TO6400-0203 Brass 0.50 18-16 0.75-1.25 2.8-3.5 6.40 12.10 23.00 5K
TO6400-0103 Brass 0.50 18-16 0.75-1.25 2.8-3.5 6.40 9.60 19.90 5K
TO8400-0104 Brass 0.60 16-14 1.25-2.5 3.5-4.0 8.40 14.50 24.30 5K
TO8400-0103 Brass 1.00 18-16 0.75-1.25 2.8-3.5 8.50 17.60 32.40 1K/bag
TO8400-0102 Brass 0.40 22-18 0.33-0.75 1.7-2.8 10.30 14.00 23.00 5K

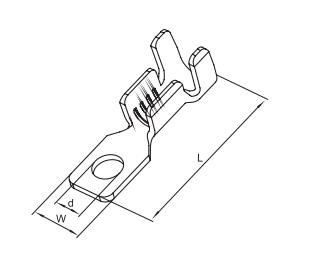

■Ring tongue terminal with squar head

Part No. Material Thickness Applicable wires Wire insulation
O.D. mm		 Dimensions（mm） Q'ty/reel
AWG# mm² d W L
TO420S-0102 Brass 0.60 20-16 0.5-1.25 2.6-3.5 4.20 9.80 17.80 5K
TO420S-0203 Brass 0.70 20-18 0.5-0.75 2.6-2.8 4.20 7.50 18.20 8K
TO420S-0204 Brass 0.70 16-14 1.25-2.5 3.5-4.0 4.20 7.50 18.20 6K
TO500S-0105 Brass 0.80 14-10 2.5-5.26 4.0-5.5 5.00 9.80 20.00 5K
TO850S-0102 Brass 0.60 20-18 0.5-0.75 2.6-2.8 8.50 17.60 32.40 1K/bag

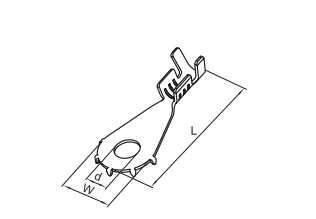

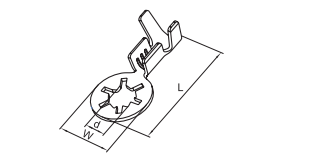

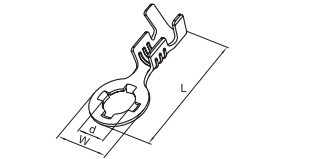

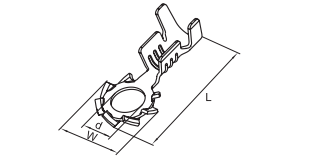

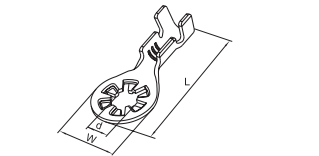

■Toothed ring tongue terminal

Part No. Material Thickness Applicable wires Wire insulation
O.D. mm		 Dimensions（mm） Q'ty/reel
AWG# mm² d W L
TO420T-0103 Brass 0.50 20-16 0.5-1.25 2.6-3.5 4.20 9.80 24.80 3K
TO420T-0204 Brass 0.45 18-14 0.75-2.5 2.8-4.0 4.20 8.00 16.40 8K
TO520T-0103 Sus 0.45 18-14 0.75-2.5 2.8-4.0 5.20 9.00 17.00 8K
TO420T-0303 Brass 0.50 18-16 0.75-1.25 2.8-3.5 4.20 7.80 16.90 8K
TO420T-0403 Brass 0.60 20-16 0.5-1.25 2.6-3.5 4.20 10.10 21.25 5K
TO650T-0103 Brass 0.65 18-16 0.75-1.25 2.8-3.5 6.50 11.50 20.50 6K

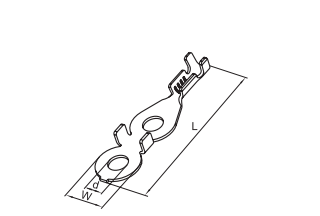

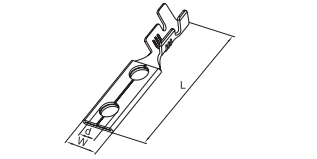

■Double ring tongue terminal

Part No. Material Thickness Applicable wires Wire insulation
O.D. mm		 Dimensions（mm） Q'ty/reel
AWG# mm² d W L

TO4200-0102

Brass

 0.60 20-18 0.5-0.75 2.6-2.8 4.30 9.50 34.20 4K

TO3700-0103

 Brass 0.50 18-16 0.75-1.25 2.8-3.5 3.70 6.90 28.00 2K
