Specifications:
Number of positions:7/9/11
Applicable wires:22～18AWG
Applicable PC board thickness:1.6mm
Temperature range:-25℃～85℃
Voltage rating:250V AC,DC Max.
Current rating:7.5A AC,DC Max.
Current resistance:≤15M Ω
Insulation resistance:≥1000M Ω
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

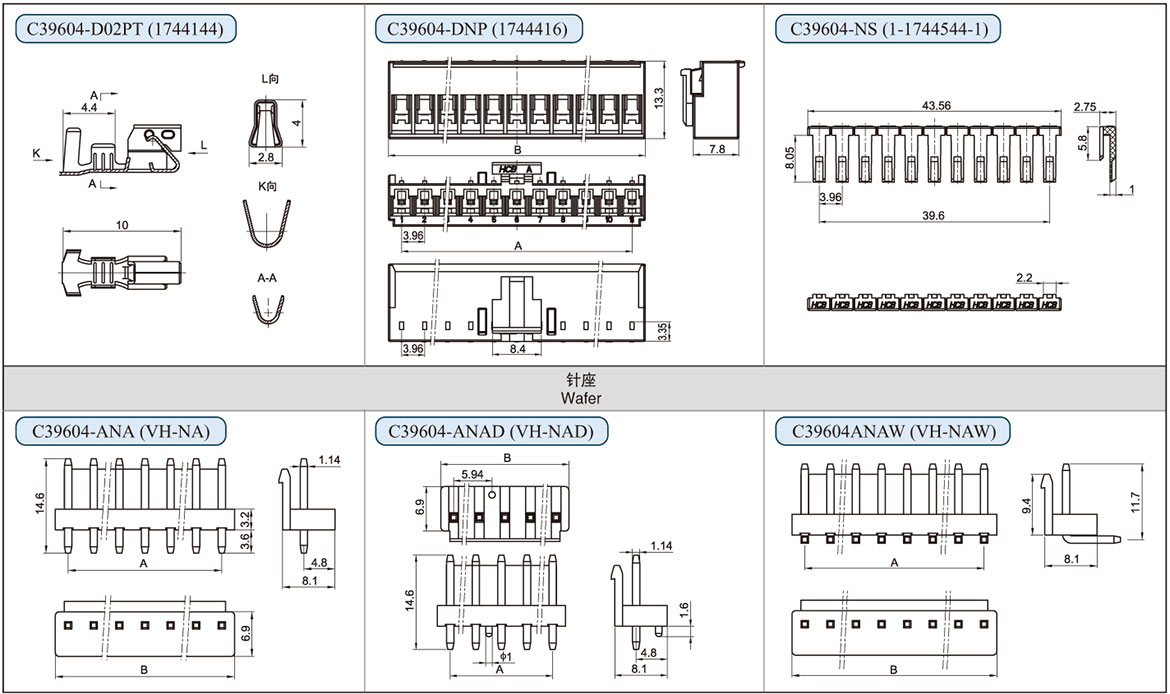

Terminal
| Прат № | материал | толщина | Применимые провода |
Изоляция провода O.D. mm |
золочение | Q'ty / катушка | |
| AWG# | mm² | ||||||
| C39604-22PT | Phosphor Bronze | 0.25 | 22-18 | 0.33-0.75 | 1.7-2.8 | Tin Plated | 3K |
| Прат № | материал | Q'ty / мешок |
| C39604-D07P | PA66 | 1K |
| C39604-D09P | PA66 | 1K |
| C39604-D11P | PA66 | 1K |
| Прат № | материал | Q'ty / мешок |
| C39604-D07S | PA66 | 1K |
| C39604-D09S | PA66 | 1K |
| C39604-D11S | PA66 | 1K |
| Прат № | материал | Q'ty / мешок |
| C39604-A07A | PA66/Brass | 1K |
| C39604-A09A | 500 | |
| C39604-A11A | 500 |
| Прат № | материал | Q'ty / мешок |
| C39604-A07AD | PA66/Brass | 1K |
| C39604-A09AD | 500 | |
| C39604-A11AD | 500 |
| Прат № | материал | Q'ty / мешок |
| C39604-A07AW | PA66/Brass | 1K |
| C39604-A09AW | 500 | |
| C39604-A11AW |
500 |
