Update time:2019-11-23 10:34
Specifications:
Number of positions:1～4
Applicable wires:22～18AWG
Temperature range:-25℃～85℃
Voltage rating:300V AC,DC Max.
Current rating:10A AC,DC Max.
Current resistance:≤15M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1500V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

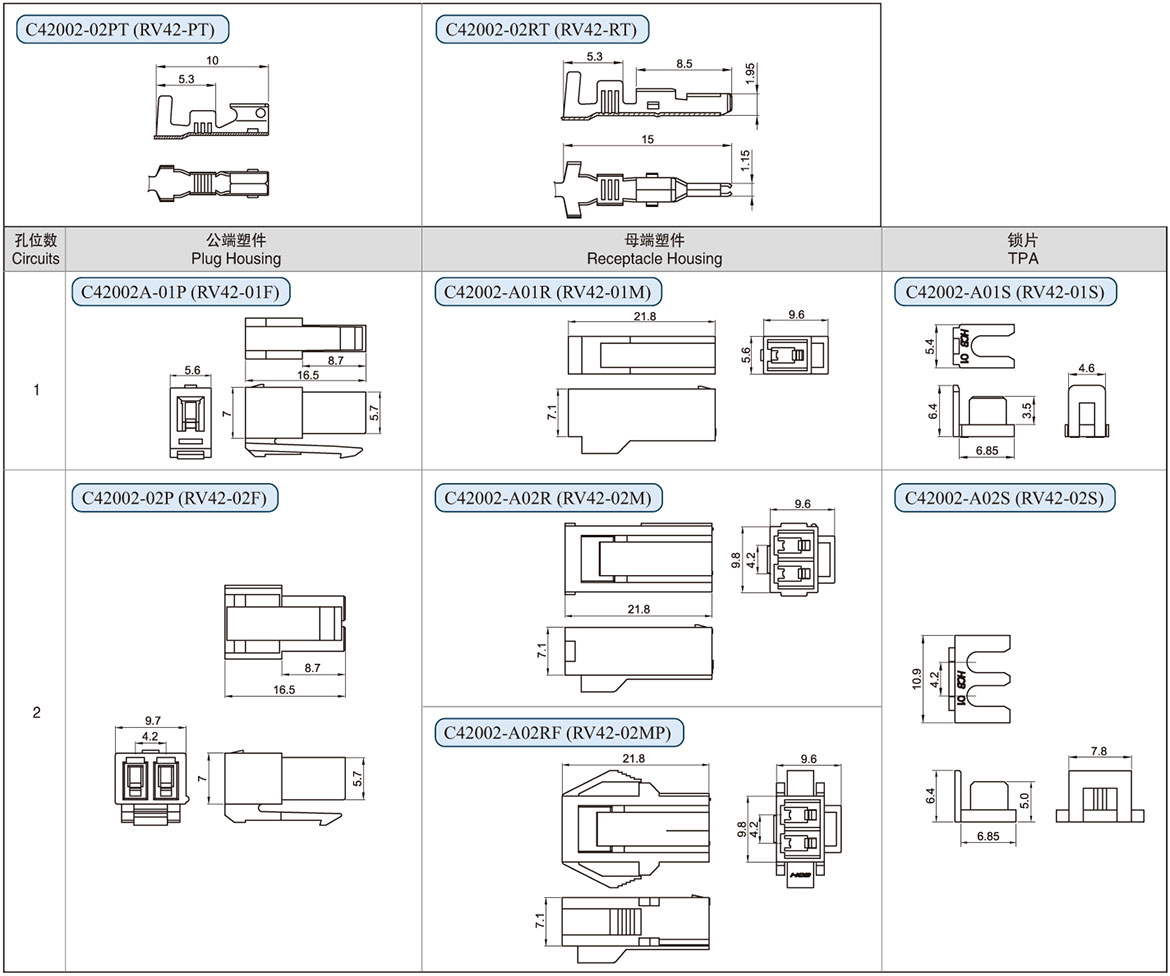

Terminal
| Прат № | материал | толщина | Применимые провода |
Изоляция провода O.D. mm |
золочение | Q'ty / катушка | |
| AWG# | mm² | ||||||
| C42002-01PT | Фосфорная бронза | 0.25 | 24-20 | 0.13-0.5 | 1.3-1.7 | Луженая | 3.5K |
| C42002-02PT | Фосфорная бронза | 0.25 | 22-18 | 0.33-0.75 | 1.7-2.8 | Луженая | 3.5K |
| C42002-01RT | Фосфорная бронза | 0.25 | 24-20 | 0.13-0.5 | 1.3-1.7 | Луженая | 3.5K |
| C42002-02RT | Фосфорная бронза | 0.25 | 22-18 | 0.33-0.75 | 1.7-2.8 | Луженаяd | 3.5K |
| Прат № | материал | Q'ty / мешок |
| C42002-A01P | PA66 | 1K |
| C42002-A02P | 1K | |
| C42002-A03P | 1K | |
| C42002-A04P | 1K |

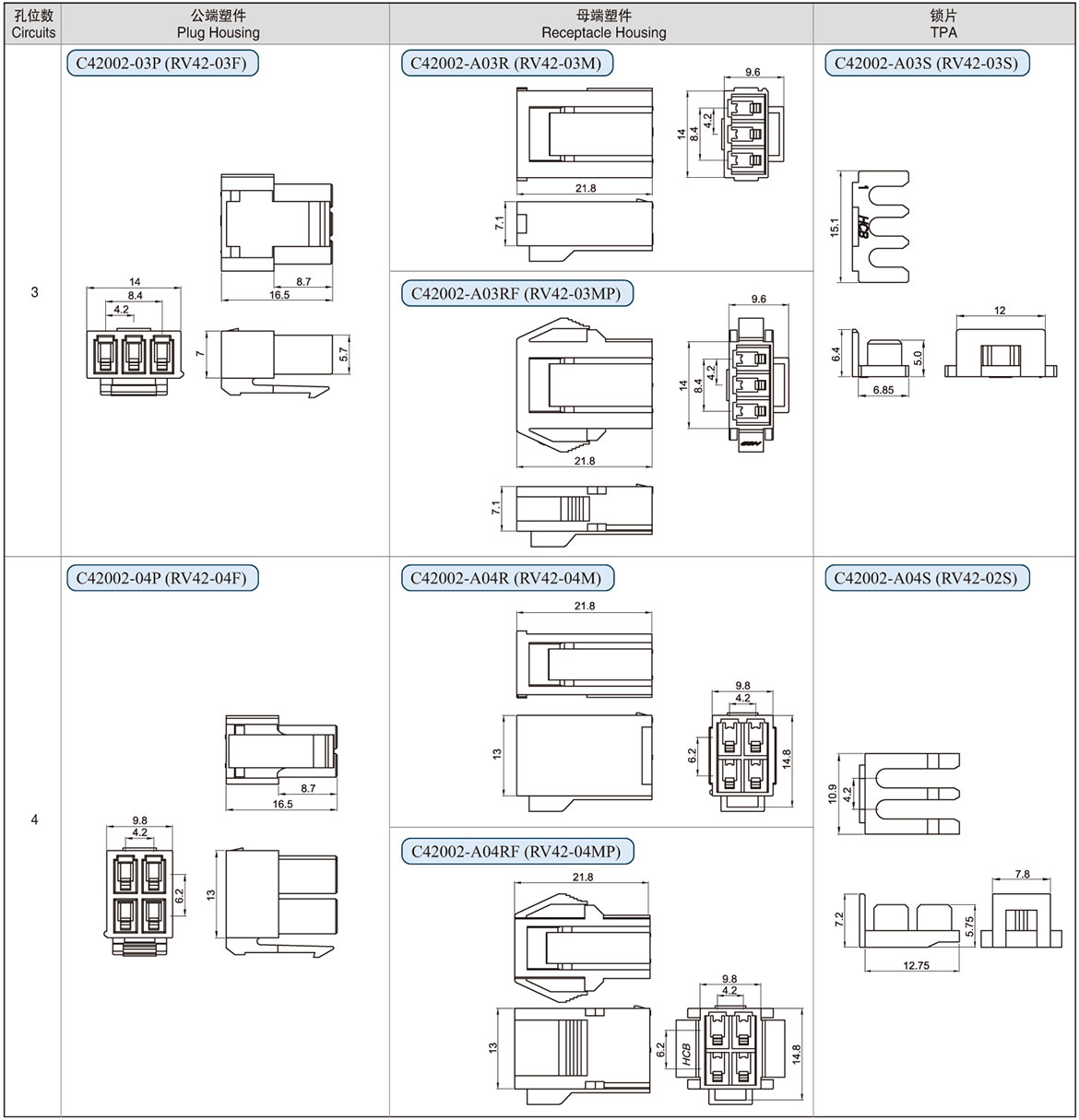

| Прат № | материал | Q'ty / мешок |
| C42002-A01RF | PA66 | 1K |
| C42002-A02RF | 1K | |
| C42002-A02R | 1K | |
| C42002-A03RF | 1K | |
| C42002-A03R | 1K | |
| C42002-A04RF | 1K | |
| C42002-A04R | 1K |
| Прат № | материал | Q'ty / мешок |
| C42002-A01S | PA66 | 2K |
| C42002-A02S | 2K | |
| C42002-A03S | 2K | |
| C42002-A04S |
2K |
