Specifications:
Number of positions:2～12
Applicable wires:20～16AWG
Temperature range:-25℃～85℃
Voltage rating:300V AC,DC Max.
Current rating:13A AC,DC Max.
Current resistance:≤10M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1800V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.
Terminal
| Прат № | материал | толщина | Применимые провода |
Изоляция провода O.D. mm |
золочение | Q'ty / катушка | |
| AWG# | mm² | ||||||
| C63501-03PT | Phosphor Bronze | 0.3 | 20-16 | 0.5-1.25 | 2.6-3.5 | Tin Plated | 3K |
| C63501-03RT | Phosphor Bronze | 0.3 | 20-16 | 0.5-1.25 | 2.6-3.5 | Tin Plated | 5K |

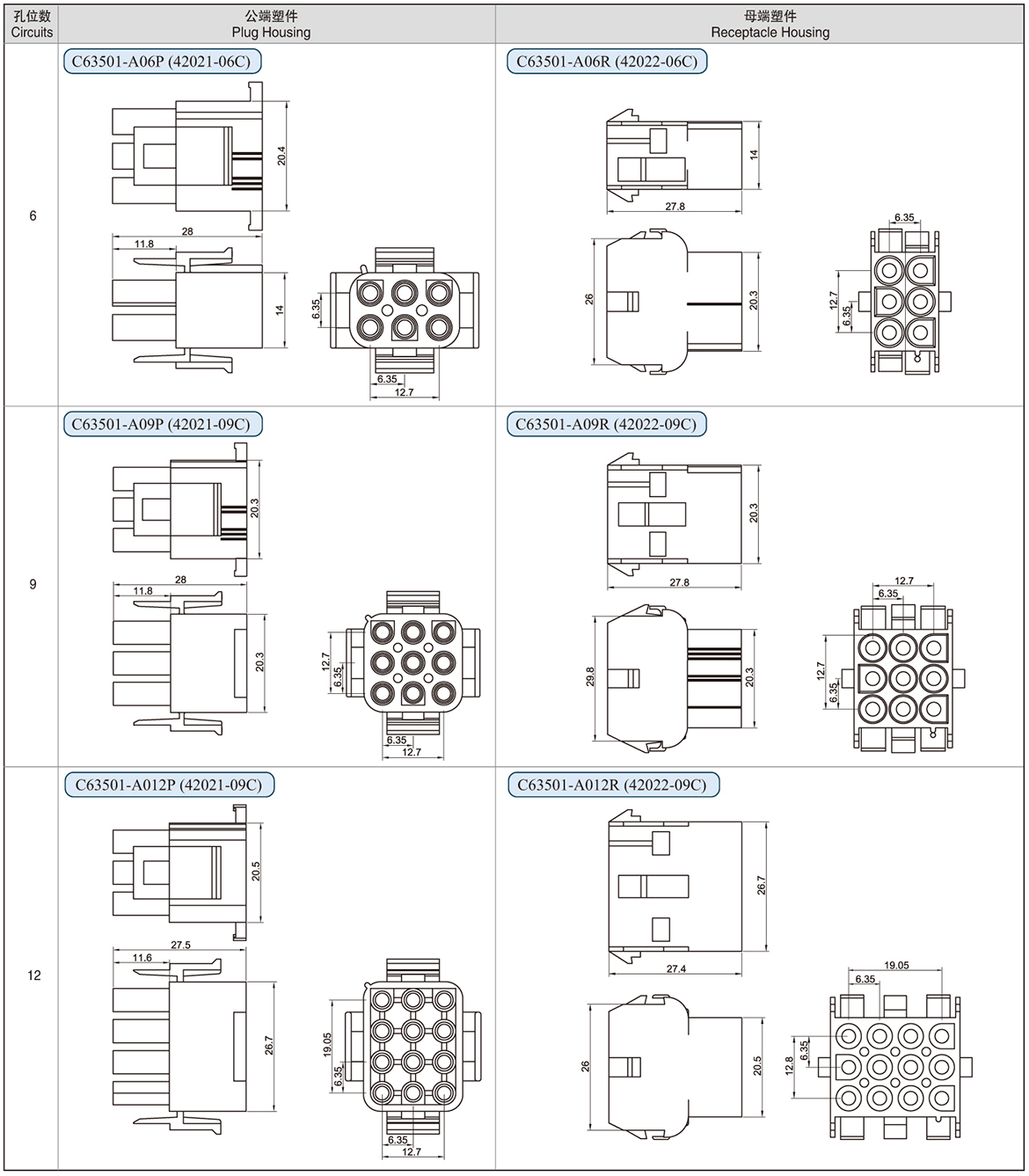

| Прат № | материал | Q'ty / мешок |
| C63501-A02P | PA66 | 500 |
| C63501-A04P | 200 | |
| C63501-A06P | 200 | |
| C63001-A09P | 200 | |
| C63001-A12P | 200 |
| Прат № | материал | Q'ty / мешок |
| C63501-A02R | PA66 | 500 |
| C63501-A04R | 200 | |
| C63501-A06R | 200 | |
| C63501-A09R | 200 | |
| C63501-A12R |
200 |
