Update time:2019-06-25 14:08
Specifications:
Number of positions:2～9
Applicable wires:20～18AWG
Temperature range:-25℃～85℃
Voltage rating:300V AC,DC Max.
Current rating:8A AC,DC Max.
Current resistance:≤10M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1000V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

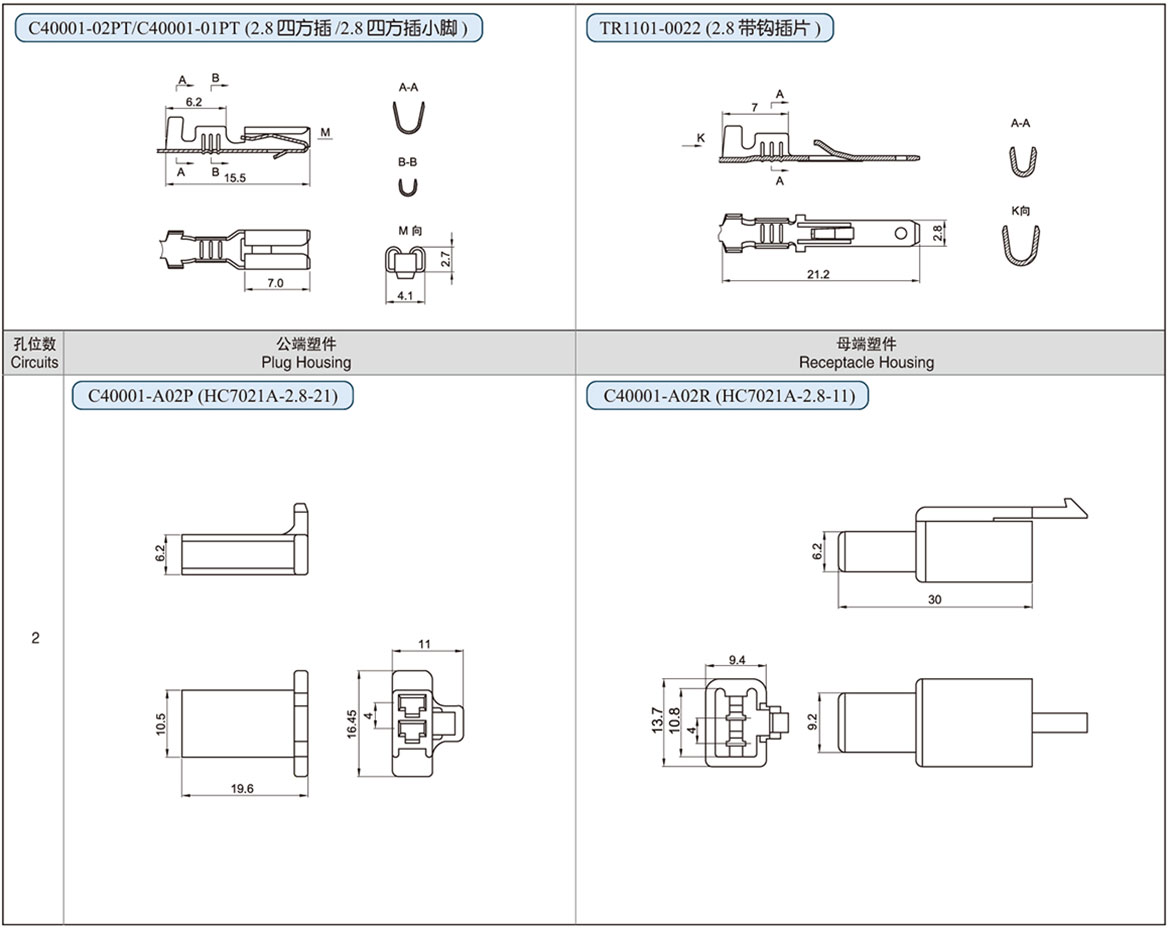

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C40001-02PT | Brass | 0.25 | 20-18 | 0.5-0.75 | 2.6-2.8 | Tin Plated | 4K |
| C40001-01PT | Brass | 0.25 | 24-22 | 0.22-0.33 | 1.5-1.7 | Tin Plated | 4K |
| TR1101-0022 | Brass | 0.5 | 20-18 | 0.5-0.75 | 2.6-2.8 | Tin Plated | 3K |

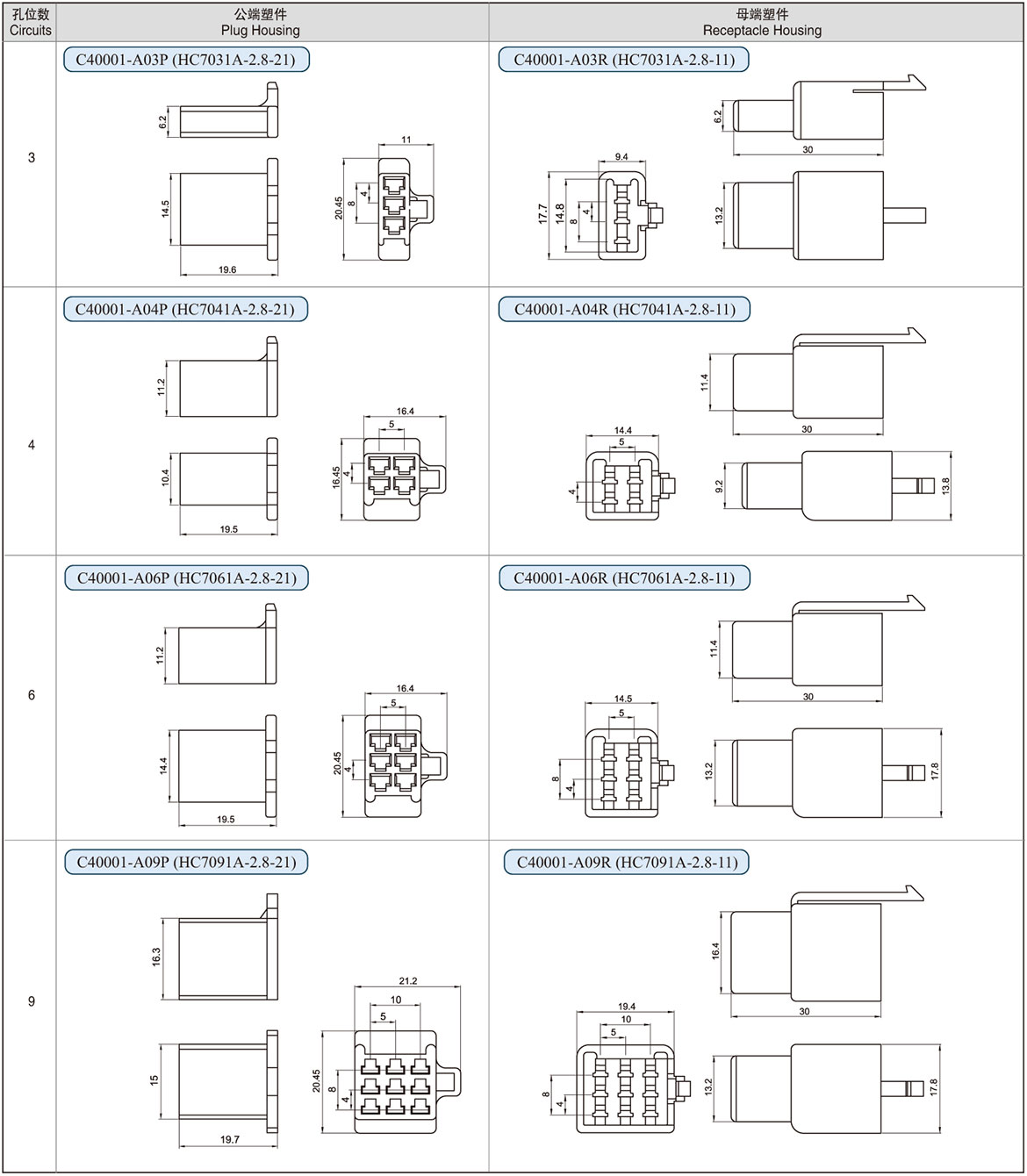

| Prat No. | Material | Q'ty/bag |
| C40001-A02P | PA66 | 1K |
| C40001-A03P | 1K | |
| C40001-A04P | 1K | |
| C40001-A06P | 1K | |
| C40001-A09P | 1K |
| Prat No. | Material | Q'ty/bag |
| C40001-A02R | PA66 | 1K |
| C40001-A03R | 500 | |
| C40001-A04R | 500 | |
| C40001-A06R | 500 | |
| C40001-A09R | 500 |
