Update time:2019-06-25 13:34
Specifications:
Number of positions:4/5
Applicable wires:26～22AWG
Applicable PC board thickness:1.6mm
Temperature range:-25℃～85℃
Voltage rating:250V AC,DC Max.
Current rating:3A AC,DC Max.
Current resistance:≤20M Ω
Insulation resistance:≥1000M Ω
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

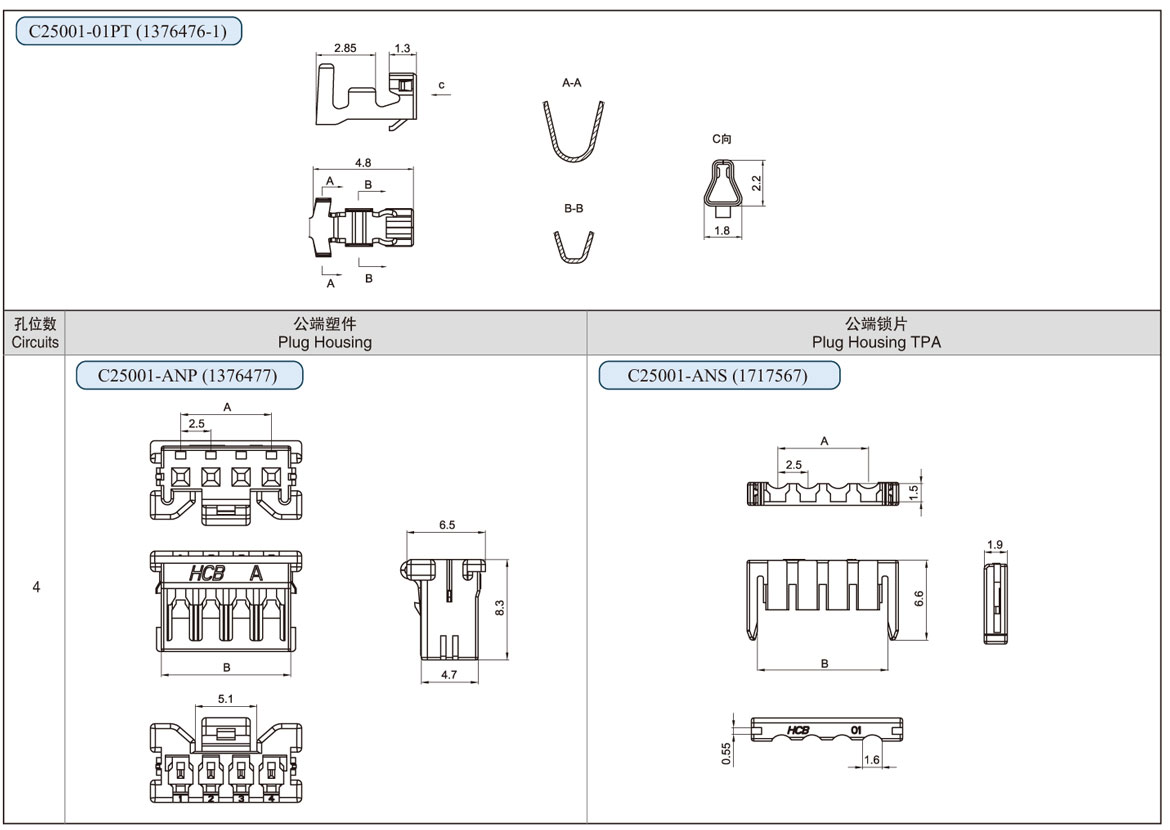

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C25001-01PT | Phosphor Bronze | 0.2 | 26-22 | 0.13-0.33 | 1.3-1.7 | Tin Plated | 7K |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25001-A04P | PA66 | 1K | 7.5 | 10.7 |
| C25001-A05P | 1K | 10 | 13.2 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25001-A04S | PA66 | 2K | 7.5 | 11.3 |
| C25001-A05S | 2K | 10 | 13.8 | |
