Update time:2019-06-25 14:04
Specifications:
Number of positions:8～30
Applicable wires:26～22AWG
Applicable PC board thickness:1.6mm
Temperature range:-25℃～85℃
Voltage rating:250V AC,DC Max.
Current rating:3A AC,DC Max.
Current resistance:≤20M Ω
Insulation resistance:≥1000M Ω
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

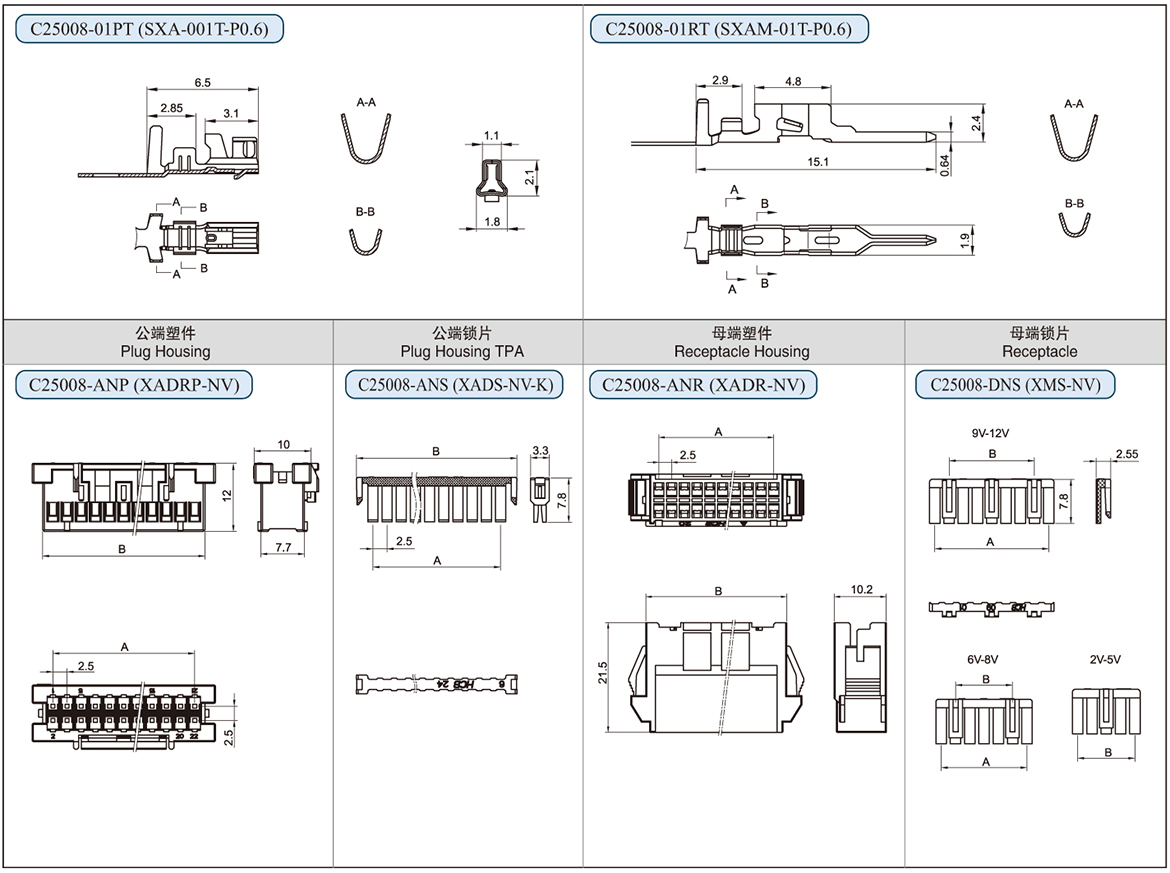

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C25008-01PT | Phosphor Bronze | 0.2 | 26-22 | 0.13-0.33 | 1.3-1.7 | Tin Plated | 7K |
| C25008-01RT | Phosphor Bronze | 0.2 | 26-22 | 0.13-0.33 | 1.3-1.7 | Tin Plated | 7K |

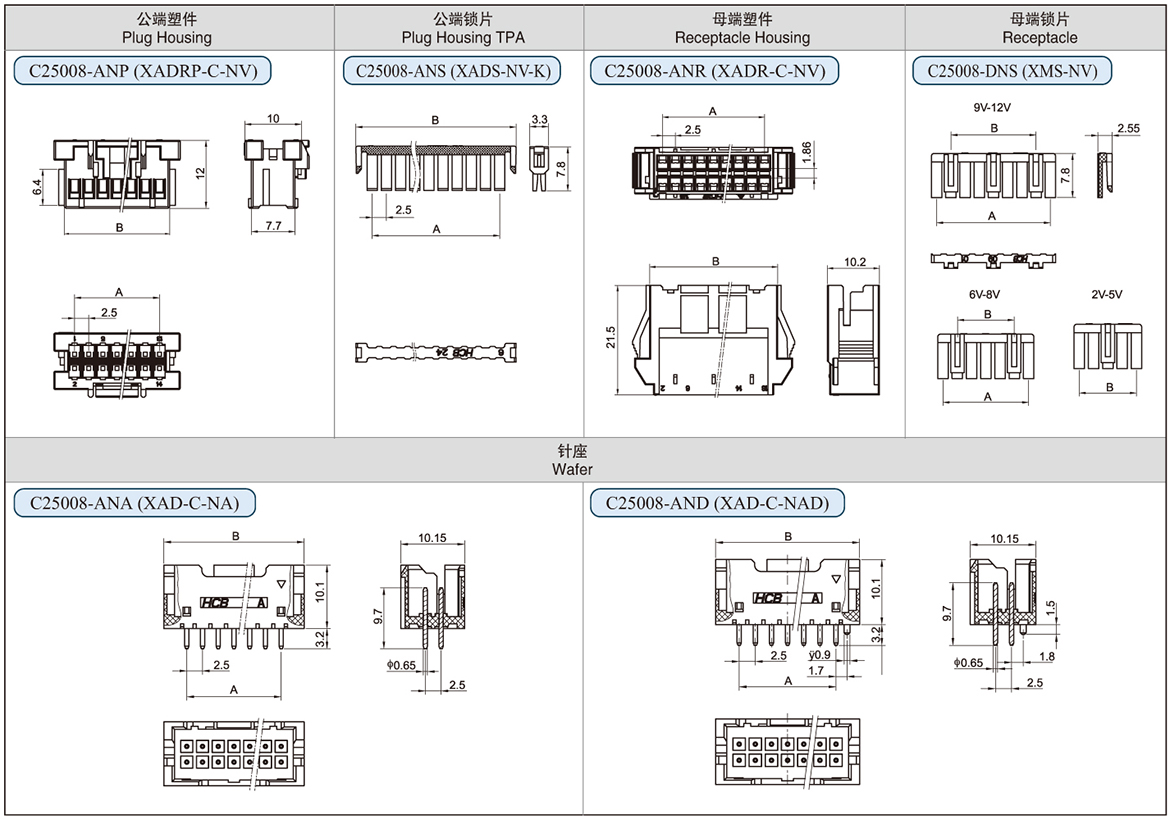

| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25008-A08P | PA66 | 500 | 7.5 | 11.1 |
| C25008-A10P | 500 | 10 | 13.6 | |
| C25008-A12P | 500 | 12.5 | 16.1 | |
| C25008-A14P | 500 | 15 | 18.6 | |
| C25008-A16P | 500 | 17.5 | 21.1 | |
| C25008-A18P | 500 | 20 | 23.6 | |
| C25008-A20P | 500 | 22.5 | 26.1 | |
| C25008-A22P | 500 | 25 | 28.6 | |
| C25008-A24P | 500 | 27.5 | 31.1 | |
| C25008-A26P | 500 | 30 | 33.6 | |
| C25008-A28P | 500 | 32.5 | 36.1 | |
| C25008-A30P | 500 | 35 | 38.6 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25008-A08S | PA66 | 500 | 7.5 | 11.3 |
| C25008-A10S | 500 | 10 | 13.8 | |
| C25008-A12S | 500 | 12.5 | 16.3 | |
| C25008-A14S | 500 | 15 | 18.8 | |
| C25008-A16S | 500 | 17.5 | 21.3 | |
| C25008-A18S | 500 | 20 | 23.8 | |
| C25008-A20S | 500 | 22.5 | 26.3 | |
| C25008-A22S | 500 | 25 | 28.8 | |
| C25008-A24S | 500 | 27.5 | 31.3 | |
| C25008-A26S | 500 | 30 | 33.8 | |
| C25008-A28S | 500 | 32.5 | 36.3 | |
| C25008-A30S | 500 | 35 | 38.8 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25008-A08R | PA66 | 500 | 7.5 | 11.3 |
| C25008-A10R | 500 | 10 | 13.8 | |
| C25008-A12R | 500 | 12.5 | 16.3 | |
| C25008-A14R | 500 | 15 | 18.8 | |
| C25008-A16R | 500 | 17.5 | 21.3 | |
| C25008-A18R | 500 | 20 | 23.8 | |
| C25008-A20R | 500 | 22.5 | 26.3 | |
| C25008-A22R | 500 | 25 | 28.8 | |
| C25008-A24R | 500 | 27.5 | 31.3 | |
| C25008-A26R | 500 | 30 | 33.8 | |
| C25008-A28R | 500 | 32.5 | 36.3 | |
| C25008-A30R | 500 | 35 | 38.8 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25008-D04S | PA66 | 500 | 7.5 | - |
| C25008-D05S | 500 | 10 | - | |
| C25008-D06S | 500 | 12.5 | 10 | |
| C25008-D07S | 500 | 15 | 10 | |
| C25008-D08S | 500 | 17.5 | 12.5 | |
| C25008-D09S | 500 | 20 | 15 | |
| C25008-D10S | 500 | 22.5 | 17.5 | |
| C25008-D11S | 500 | 25 | 20 | |
| C25008-D12S | 500 | 27.5 | 22.5 | |
| C25008-D13S | 500 | 30 | 25 | |
| C25008-D14S | 500 | 32.5 | 27.5 | |
| C25008-D15S | 500 | 35 | 30 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25008-A08A | PA66/Brass | 500 | 7.5 | 11.4 |
| C25008-A10A | 500 | 10 | 13.9 | |
| C25008-A12A | 500 | 12.5 | 16.4 | |
| C25008-A14A | 500 | 15 | 18.9 | |
| C25008-A16A | 500 | 17.5 | 24.4 | |
| C25008-A18A | 500 | 20 | 23.9 | |
| C25008-A20A | 500 | 22.5 | 26.4 | |
| C25008-A22A | 500 | 25 | 28.9 | |
| C25008-A24A | 500 | 27.5 | 31.4 | |
| C25008-A26A | 500 | 30 | 33.9 | |
| C25008-A28A | 500 | 32.5 | 36.4 | |
| C25008-A30A | 500 | 35 | 38.9 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25008-A08AD | PA66/Brass | 500 | 7.5 | 11.4 |
| C25008-A10AD | 500 | 10 | 13.9 | |
| C25008-A12AD | 500 | 12.5 | 16.4 | |
| C25008-A14AD | 500 | 15 | 18.9 | |
| C25008-A16AD | 500 | 17.5 | 24.4 | |
| C25008-A18AD | 500 | 20 | 23.9 | |
| C25008-A20AD | 500 | 22.5 | 26.4 | |
| C25008-A22AD | 500 | 25 | 28.9 | |
| C25008-A24AD | 500 | 27.5 | 31.4 | |
| C25008-A26AD | 500 | 30 | 33.9 | |
| C25008-A28AD | 500 | 32.5 | 36.4 | |
| C25008-A30AD | 500 | 35 | 38.9 | |
