Specifications:
Number of positions:2～12
Applicable wires:26～20AWG
Temperature range:-25℃～85℃
Voltage rating:250V AC,DC Max.
Current rating:3A AC,DC Max.
Current resistance:≤20M
Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1000V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

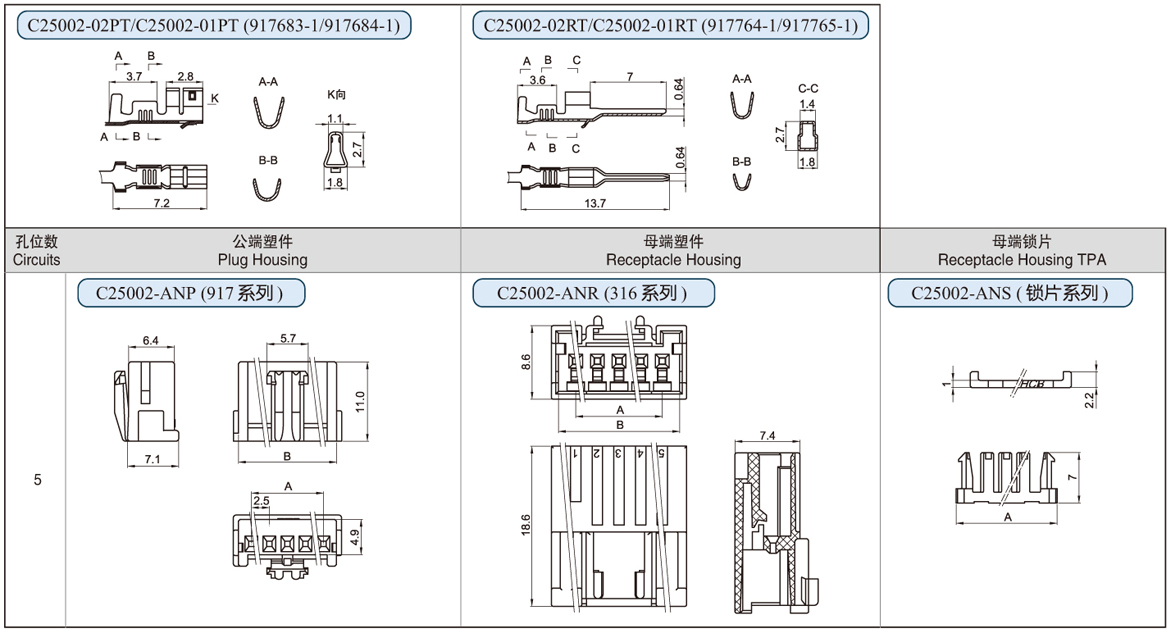

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C25002-01PT | Phosphor Bronze | 0.2 | 26-22 | 0.13-0.33 | 1.3-1.7 | Tin Plated | 7K |
| C25002-02PT | Phosphor Bronze | 0.2 | 22-20 | 0.33-0.5 | 1.3-2.0 | Tin Plated | 7K |
| C25002-01RT | Phosphor Bronze | 0.2 | 26-22 | 0.13-0.33 | 1.3-1.7 | Tin Plated | 7K |
| C25002-02RT | Phosphor Bronze | 0.2 | 22-20 | 0.33-0.5 | 1.3-2.0 | Tin Plated | 7K |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25002-A02P | PA66 | 1K | 2.5 | 6.1 |
| C25002-A03P | 1K | 5 | 8.6 | |
| C25002-A04P | 1K | 7.5 | 11.1 | |
| C25002-A05P | 1K | 10 | 13.6 | |
| C25002-A06P | 1K | 12.5 | 16.1 | |
| C25002-A07P | 1K | 15 | 18.6 | |
| C25002-A08P | 1K | 17.5 | 21.1 | |
| C25002-A09P | 1K | 20 | 23.6 | |
| C25002-A10P | 1K | 22.5 | 26.1 | |
| C25002-A11P | 1K | 25 | 28.6 | |
| C25002-A12P | 1K | 27.5 | 31.1 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25002-A02R | PA66 | 1K | 2.5 | 6.3 |
| C25002-A02R | 1K | 5 | 8.8 | |
| C25002-A04R | 1K | 7.5 | 11.3 | |
| C25002-A05R | 1K | 10 | 13.8 | |
| C25002-A06R | 1K | 12.5 | 16.3 | |
| C25002-A07R | 1K | 15 | 18.8 | |
| C25002-A08R | 1K | 17.5 | 21.3 | |
| C25002-A09R | 1K | 20 | 23.8 | |
| C25002-A10R | 1K | 22.5 | 26.3 | |
| C25002-A11R | 1K | 25 | 28.8 | |
| C25002-A12R | 1K | 27.5 | 31.3 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) |
| A | |||
| C25002-A02S | PA66 | 2K | 6.5 |
| C25002-A03S | 2K | 9 | |
| C25002-A04S | 2K | 11.5 | |
| C25002-A05S | 2K | 14 | |
| C25002-A06S | 2K | 16.5 | |
| C25002-A07S | 2K | 19 | |
| C25002-A08S | 2K | 21.5 | |
| C25002-A09S | 2K | 24 | |
| C25002-A10S | 2K | 26.5 | |
| C25002-A11S | 2K | 29 | |
| C25002-A12S | 2K | 31.5 |
