Specifications:
Number of positions:2～15
Applicable wires:26～20AWG
Temperature range:-25℃～85℃
Voltage rating:250V AC,DC Max.
Current rating:3A AC,DC Max.
Current resistance:≤20M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1000V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.
Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||

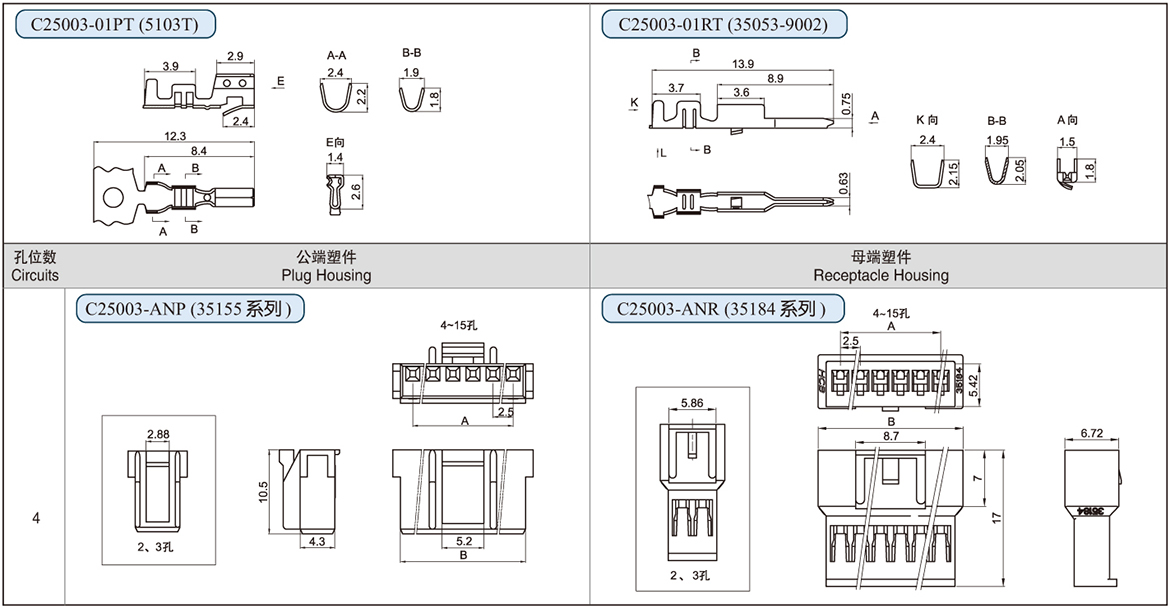

| C25003-01PT | Phosphor Bronze | 0.2 | 26-22 | 0.13-0.33 | 1.3-1.7 | Tin Plated | 7K |
| C25003-01RT | Phosphor Bronze | 0.2 | 26-22 | 0.13-0.33 | 1.3-1.7 | Tin Plated | 10K |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25003-A02P | PA66 | 1K | 2.5 | 5.6 |
| C25003-A03P | 1K | 5 | 8.1 | |
| C25003-A04P | 1K | 7.5 | 10.6 | |
| C25003-A05P | 1K | 10 | 13.1 | |
| C25003-A06P | 1K | 12.5 | 15.6 | |
| C25003-A07P | 1K | 15 | 18.1 | |
| C25003-A08P | 1K | 17.5 | 20.6 | |
| C25003-A09P | 1K | 20 | 23.1 | |
| C25003-A10P | 1K | 22.5 | 25.6 | |
| C25003-A11P | 1K | 25 | 28.1 | |
| C25003-A12P | 1K | 27.5 | 30.6 | |
| C25003-A13P | 1K | 30 | 33.1 | |
| C25003-A14P | 1K | 32.5 | 35.6 | |
| C25003-A15P | 1K | 35 | 38.1 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25003-A02R | PA66 | 1K | 2.5 | 5.86 |
| C25003-A03R | 1K | 5 | 8.36 | |
| C25003-A04R | 1K | 7.5 | 10.86 | |
| C25003-A05R | 1K | 10 | 13.36 | |
| C25003-A06R | 1K | 12.5 | 15.86 | |
| C25003-A07R | 1K | 15 | 18.36 | |
| C25003-A08R | 1K | 17.5 | 20.86 | |
| C25003-A09R | 1K | 20 | 23.36 | |
| C25003-A10R | 1K | 22.5 | 25.86 | |
| C25003-A11R | 1K | 25 | 28.36 | |
| C25003-A12R | 1K | 27.5 | 30.86 | |
| C25003-A13R | 1K | 30 | 33.36 | |
| C25003-A14R | 1K | 32.5 | 35.86 | |
| C25003-A15R | 1K | 35 | 38.36 | |
