Specifications:
Number of positions:2～14
Applicable wires:26～22AWG
Temperature range:-25℃～85℃
Voltage rating:250V AC,DC Max.
Current rating:3A AC,DC Max.
Current resistance:≤20M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1000V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

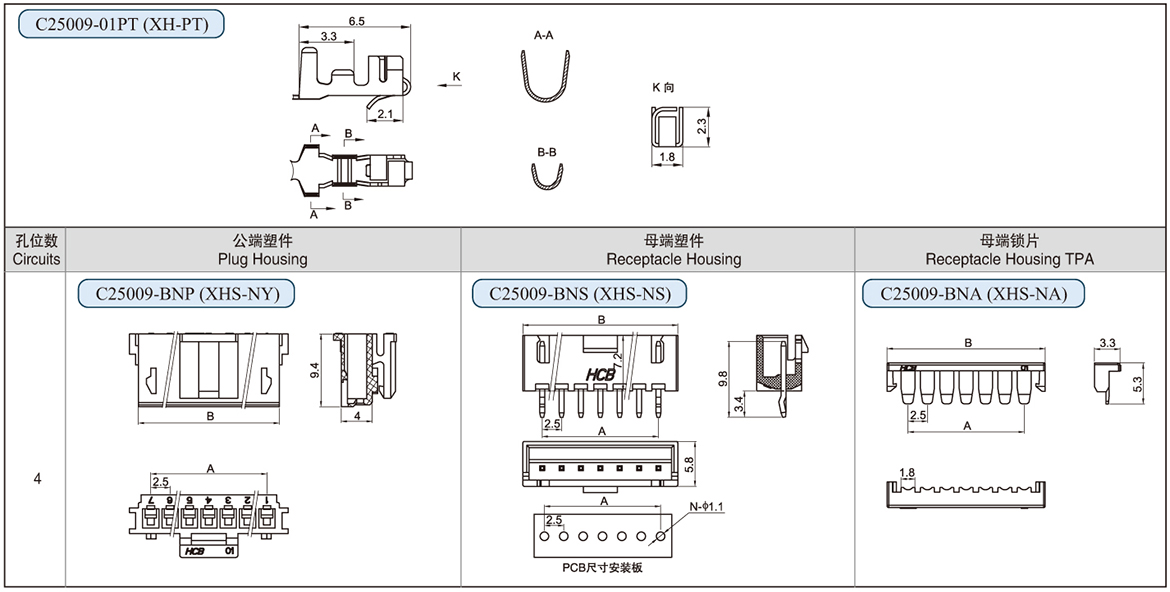

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C25009-01PT | Phosphor Bronze | 0.2 | 26-22 | 0.13-0.33 | 1.3-1.7 | Tin Plated | 6K |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25009-B02P | PA66 | 1K | 2.5 | 5.7 |
| C25009-B03P | 1K | 5 | 8.2 | |
| C25009-B04P | 1K | 7.5 | 10.7 | |
| C25009-B05P | 1K | 10 | 13.2 | |
| C25009-B06P | 1K | 12.5 | 15.7 | |
| C25009-B07P | 1K | 15 | 18.2 | |
| C25009-B08P | 1K | 17.5 | 20.7 | |
| C25009-B09P | 1K | 20 | 23.2 | |
| C25009-B10P | 1K | 22.5 | 25.7 | |
| C25009-B11P | 500 | 25 | 28.2 | |
| C25009-B12P | 500 | 27.5 | 30.7 | |
| C25009-B13P | 500 | 30 | 33.2 | |
| C25009-B14P | 500 | 32.5 | 35.7 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25009-B02S | PA66 | 2K | 2.5 | 8 |
| C25009-B03S | 2K | 5 | 10.5 | |
| C25009-B04S | 2K | 7.5 | 13 | |
| C25009-B05S | 2K | 10 | 15.5 | |
| C25009-B06S | 2K | 12.5 | 18 | |
| C25009-B07S | 2K | 15 | 20.5 | |
| C25009-B08S | 2K | 17.5 | 23 | |
| C25009-B09S | 2K | 20 | 25.5 | |
| C25009-B10S | 2K | 22.5 | 28 | |
| C25009-B11S | 1K | 25 | 30.5 | |
| C25009-B12S | 1K | 27.5 | 33 | |
| C25009-B13S | 1K | 30 | 35.5 | |
| C25009-B14S | 1K | 32.5 | 38 | |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C25009-B02A | PA66/Brass | 1K | 2.5 | 6 |
| C25009-B03A | 1K | 5 | 8.5 | |
| C25009-B04A | 1K | 7.5 | 11 | |
| C25009-B05A | 1K | 10 | 13.5 | |
| C25009-B06A | 1K | 12.5 | 16 | |
| C25009-B07A | 1K | 15 | 18.5 | |
| C25009-B08A | 1K | 17.5 | 21 | |
| C25009-B09A | 1K | 20 | 23.5 | |
| C25009-B10A | 1K | 22.5 | 26 | |
| C25009-B11A | 500 | 25 | 28.5 | |
| C25009-B12A | 500 | 27.5 | 31 | |
| C25009-B13A | 500 | 30 | 33.5 | |
| C25009-B14A | 500 | 32.5 | 36 | |
