Update time:2019-06-25 14:02
Specifications:
Number of positions:2～12
Applicable wires:22～18AWG
Temperature range:-25℃～85℃
Voltage rating:250V AC,DC Max.
Current rating:7.5A AC,DC Max.
Current resistance:≤15M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1500V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

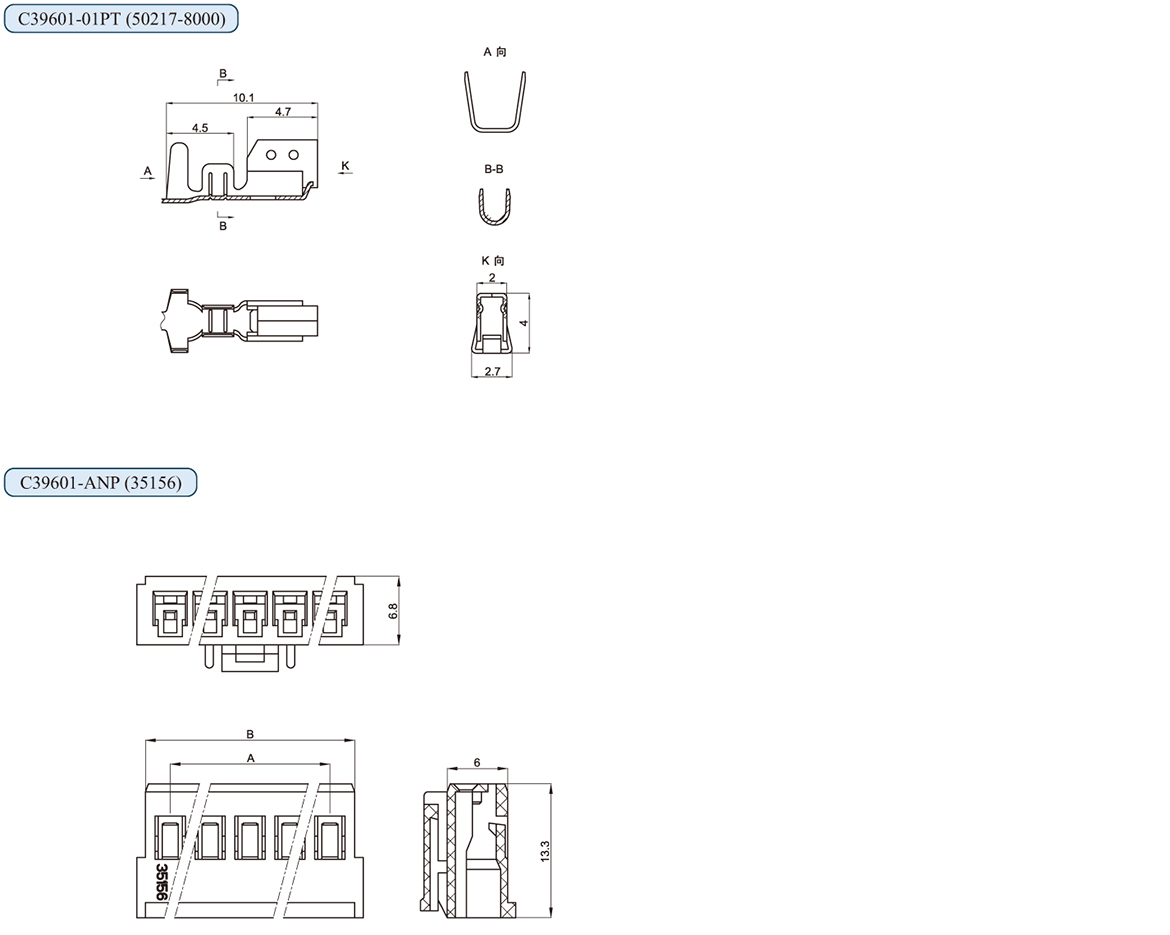

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C39601-01PT | Phosphor Bronze | 0.25 | 22-18 | 0.13-0.33 | 1.3-1.7 | Tin Plated | 3K |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C39601-A02P | PA66 | 1K | 3.96 | 8.88 |
| C39601-A03P | 1K | 7.92 | 12.84 | |
| C39601-A04P | 1K | 11.88 | 16.8 | |
| C39601-A05P | 1K | 15.84 | 20.76 | |
| C39601-A06P | 1K | 19.8 | 24.72 | |
| C39601-A07P | 1K | 23.76 | 28.68 | |
| C39601-A08P | 1K | 27.72 | 32.64 | |
| C39601-A09P | 1K | 31.68 | 36.6 | |
| C39601-A10P | 1K | 35.64 | 40.56 | |
| C39601-A11P | 1K | 39.6 | 44.52 | |
| C39601-A12P | 1K | 43.56 | 48.48 | |
