Specifications:
Number of positions:3～5 *Temperature range:(including temperature rise in applying electrical current)
Applicable wires:20～16AWG
Applicable PC board thickness:1.6mm
Temperature range:-25℃～85℃
Voltage rating:250V AC,DC Max.
Current rating:7.5A AC,DC Max.
Current resistance:≤15M Ω
Insulation resistance:≥1000M Ω
*Compliant with RoHS.

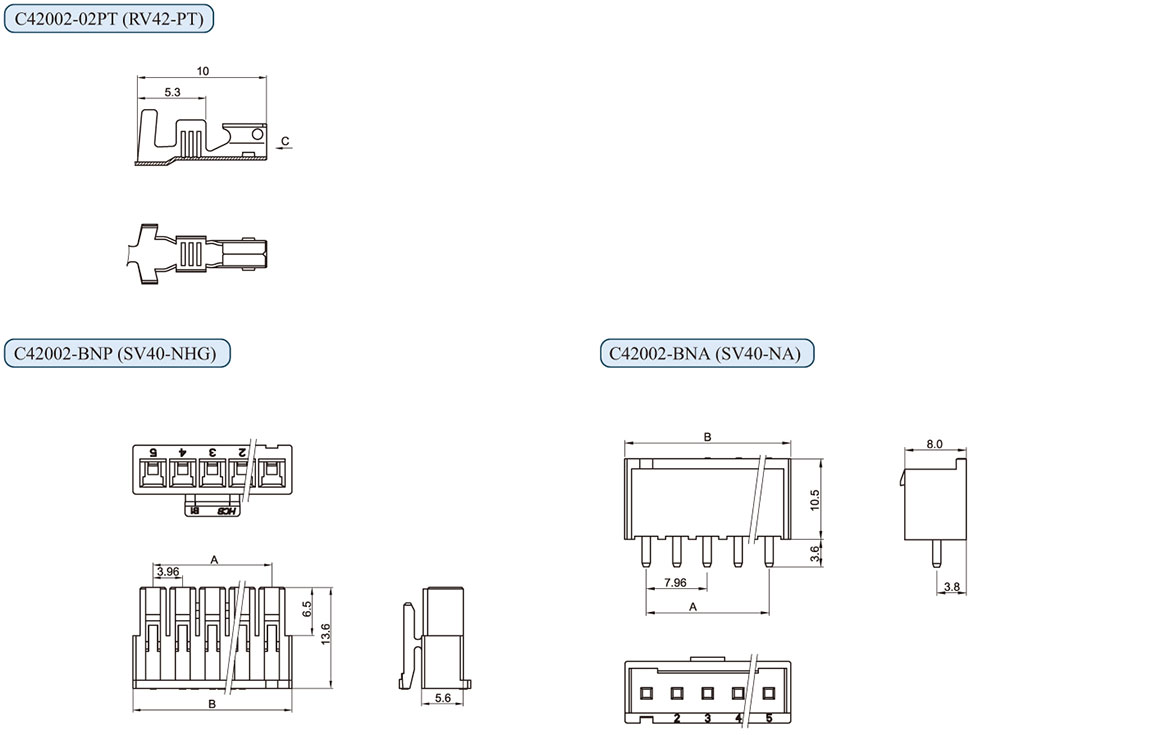

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C42002-01PT | Phosphor Bronze | 0.25 | 24-20 | 0.13-0.5 | 1.3-1.7 | Tin Plated | 3.5K |
| C42002-02PT | Phosphor Bronze | 0.25 | 22-18 | 0.33-0.75 | 1.7-2.8 | Tin Plated | 3.5K |
| C42002-01RT | Phosphor Bronze | 0.25 | 24-20 | 0.13-0.5 | 1.3-1.7 | Tin Plated | 3.5K |
| C42002-02RT | Phosphor Bronze | 0.25 | 22-18 | 0.33-0.75 | 1.7-2.8 | Tin Plated | 3.5K |
| Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | |||
| C42002-B03P | PA66 | 1K | 7.92 | 13.4 |
| C42002-B04P | 1K | 11.88 | 17.4 | |
| C42002-B05P | 1K | 15.84 | 21.4 | |
| Name | Prat No. | Material | Q'ty/bag | Dimensions(mm) | |
| A | B | ||||
| SV40-03A | C42002-B03A | PA66/Brass | 1K | 7.92 | 13.52 |
| SV40-04A | C42002-B04A | 1K | 11.88 | 17.48 | |
| SV40-05A | C42002-B05A | 1K | 15.84 | 21.44 | |
