Specifications:
Number of positions:1～6
Applicable wires:24～18AWG
Temperature range:-25℃～85℃
Voltage rating:300V AC,DC Max.
Current rating:10A AC,DC Max.
Current resistance:≤15M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1500V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

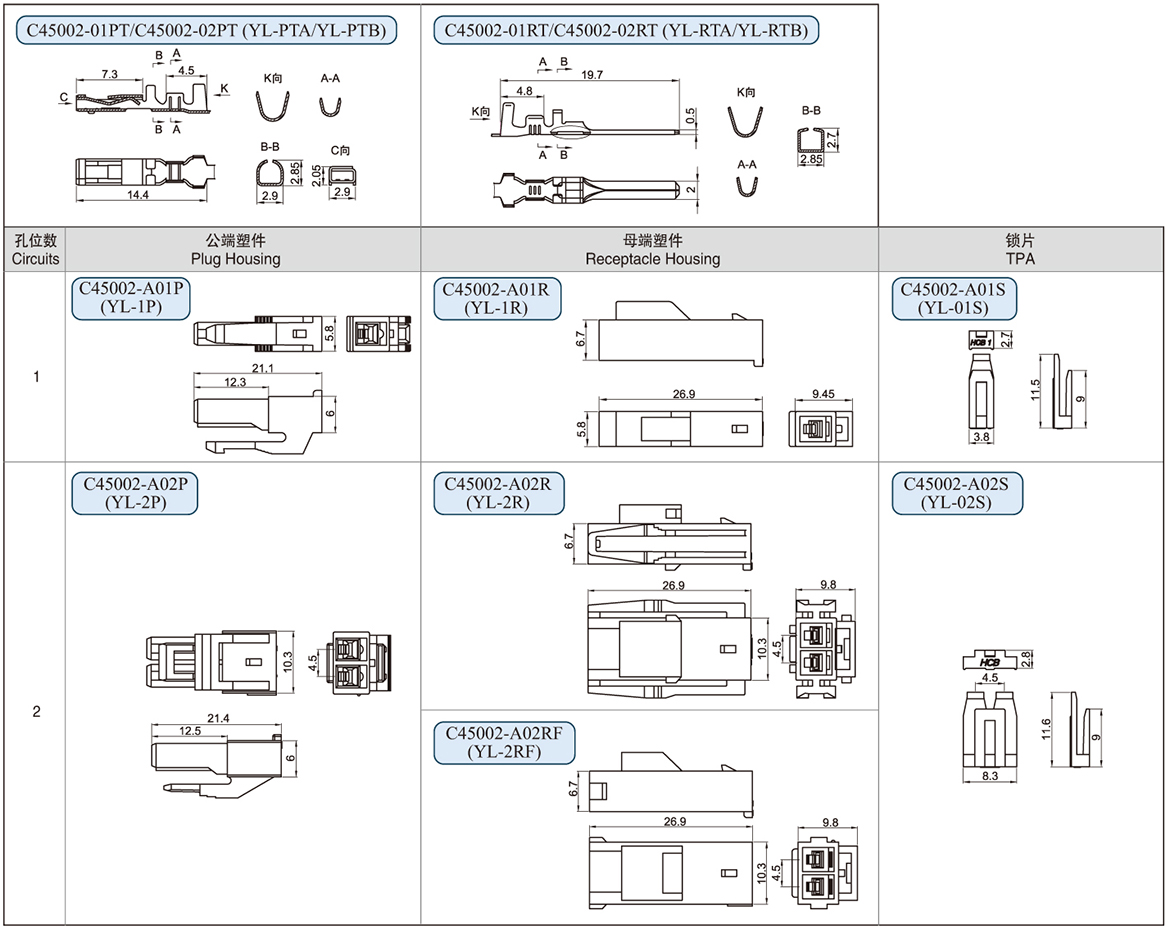

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C45002-01PT | Phosphor Bronze | 0.25 | 24-20 | 0.22-0.5 | 2.1-2.6 | Tin Plated | 5K |
| C45002-02PT | Phosphor Bronze | 0.25 | 22-18 | 0.33-0.75 | 1.7-2.8 | Tin Plated | 3.5K |
| C45002-01RT | Phosphor Bronze | 0.2 | 24-20 | 0.22-0.5 | 2.1-2.6 | Tin Plated | 5K |
| C45002-02RT | Phosphor Bronze | 0.25 | 22-18 | 0.33-0.75 | 1.7-2.8 | Tin Plated | 3.5K |

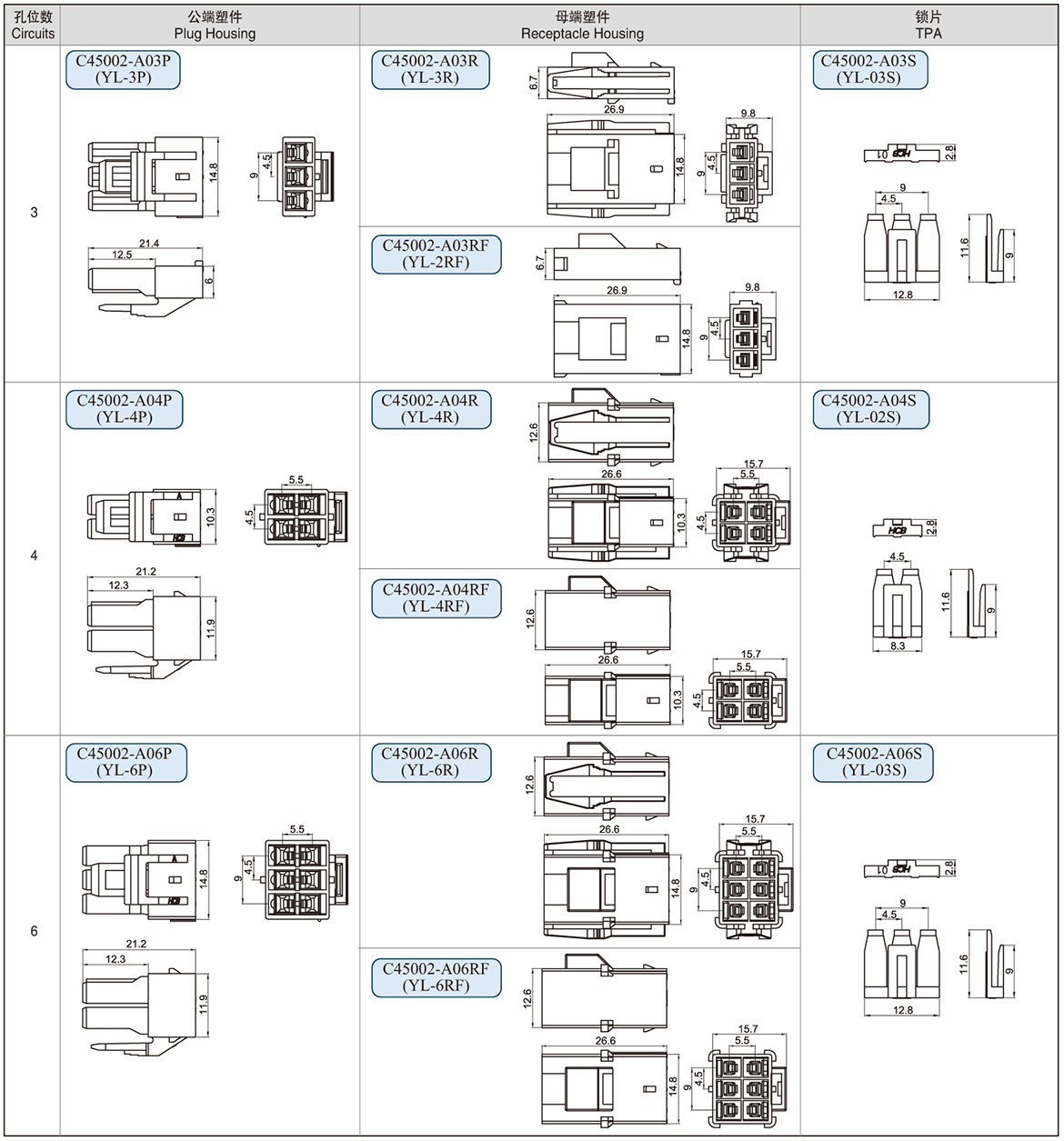

| Prat No. | Material | Q'ty/bag |
| C45002-A01P | PA66 | 2K |
| C45002-A02P | 1K | |
| C45002-A03P | 1K | |
| C45002-A04P | 1K | |
| C45002-A06P | 500 |
| Prat No. | Material | Q'ty/bag |
| C45002-A01R | PA66 | 1K |
| C45002-A02R | 1K | |
| C45002-A02RF | 1K | |
| C45002-A03R | 500 | |
| C45002-A03RF | 500 | |
| C45002-A04R | 500 | |
| C45002-A04RF | 500 | |
| C45002-A06R | 500 | |
| C45002-A06RF | 500 |
| Prat No. | Material | Q'ty/bag |
| C45002-A01S | PA66 | 2K |
| C45002-A02S | 2K | |
| C45002-A03S | 2K |
