Update time:2019-06-25 13:54
Specifications:
Number of positions:2～4
Applicable wires:18～14AWG
Temperature range:-25℃～85℃
Voltage rating:300V AC,DC Max.
Current rating:10A AC,DC Max.
Current resistance:≤15M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1500V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

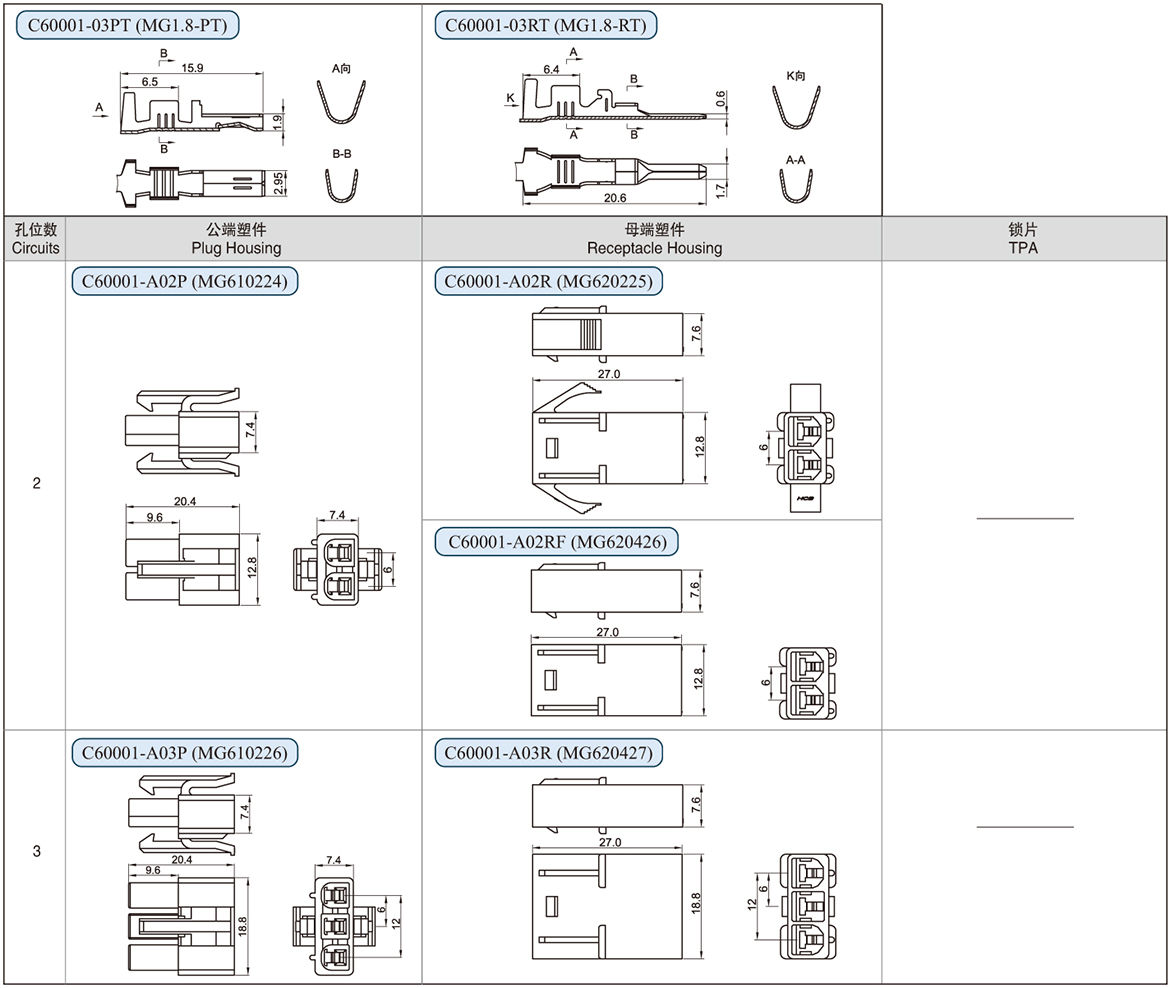

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C60001-03PT | Phosphor Bronze | 0.3 | 18-14 | 0.75-2.5 | 2.8-4.0 | Tin Plated | 2.5K |
| C60001-03RT | Phosphor Bronze | 0.3 | 18-14 | 0.75-2.5 | 2.8-4.0 | Tin Plated | 2.5K |

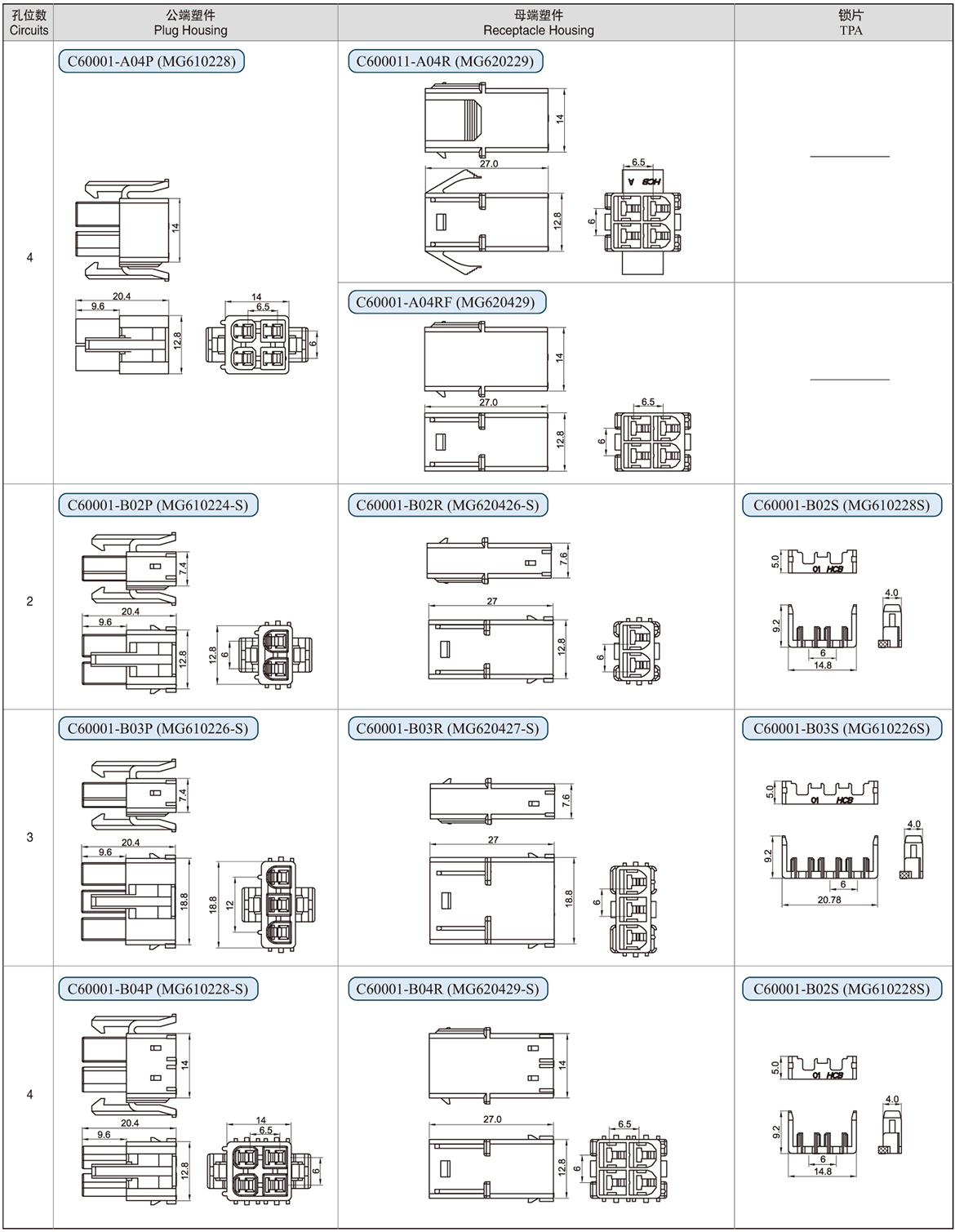

| Prat No. | Material | Q'ty/bag |
| C60001-A02P | PA66 | 1K |
| C60001-B02P | 1K | |
| C60001-A03P | 1K | |
| C60001-B03P | 1K | |
| C60001-A04P | 500 | |
| C60001-B04P | 500 |
| Prat No. | Material | Q'ty/bag |
| C60001-B02S | PA66 | 2K |
| C60001-B03S | 2K |
| Prat No. | Material | Q'ty/bag |
| C60001-A02R | PA66 | 1K |
| C60001-A02RF | 1K | |
| C60001-B02RF | 1K | |
| C60001-A03R | 1K | |
| C60001-A03RF | 1K | |
| C60001-B03RF | 1K | |
| C60001-A04R | 500 | |
| C60001-A04RF | 500 | |
| C60001-B04RF | 500 |
