Update time:2019-06-25 13:50
Specifications:
Number of positions:1～9
Applicable wires:22～18AWG
Temperature range:-25℃～85℃
Voltage rating:300V AC,DC Max.
Current rating:15A AC,DC Max.
Current resistance:≤10M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:1800V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

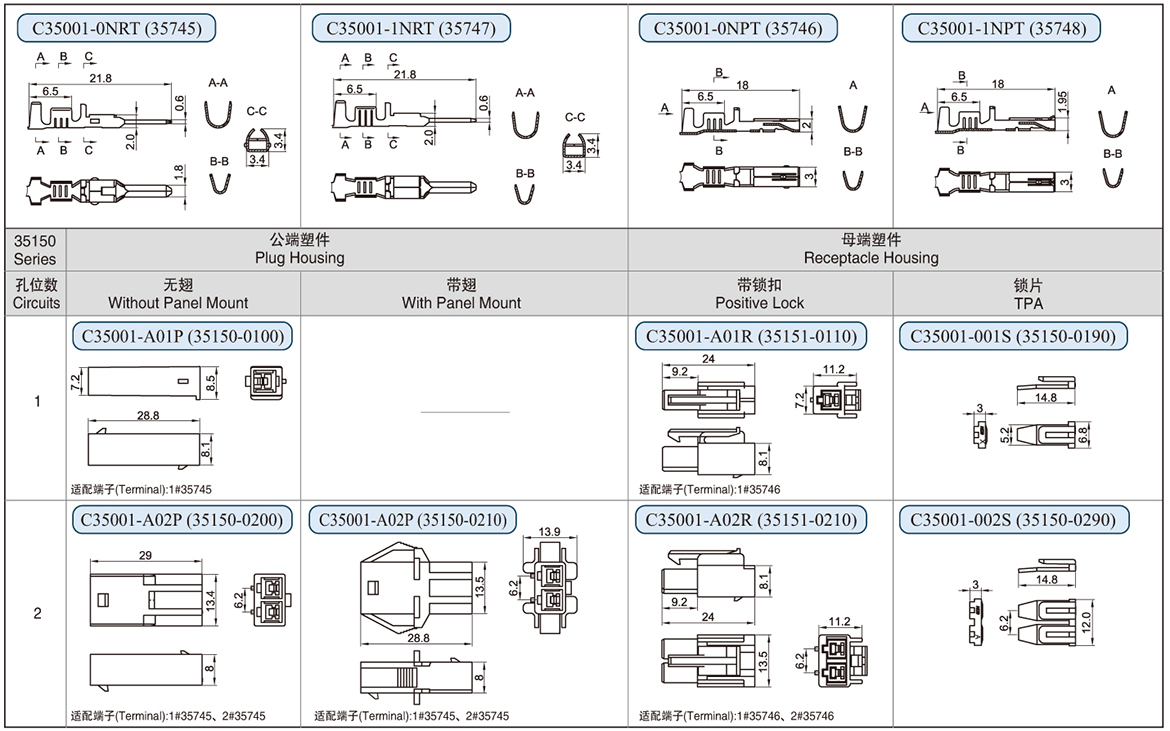

Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C35001-02RT | Brass | 0.3 | 22-20 | 0.33-0.5 | 1.7-2.6 | Tin Plated | 3K |
| C35001-03RT | Brass | 0.3 | 18-14 | 0.75-2.5 | 2.8-4.0 | Tin Plated | 2.5K |
| C35001-04RT | Brass | 0.3 | 20+20/20+18/18+18 | 0.5+0.5/0.5+0.75+0.75+0.75 | 2.6+2.6/2.6+2.8/2.8+2.8 | Tin Plated | 2.5K |
| C35001-01RT | Brass | 0.3 | 24-22 | 0.22-0.33 | 1.5-1.7 | Tin Plated | 4K |
| C35001-02PT | Brass | 0.3 | 22-20 | 0.33-0.5 | 1.7-2.6 | Tin Plated | 3K |
| C35001-03PT | Brass | 0.3 | 18-14 | 0.75-2.5 | 2.8-4.0 | Tin Plated | 2.5K |
| C35001-04PT | Brass | 0.3 | 20+20/20+18/18+18 | 0.5+0.5/0.5+0.75+0.75+0.75 | 2.6+2.6/2.6+2.8/2.8+2.8 | Tin Plated | 2.5K |
| C35001-01PT | Brass | 0.3 | 24-22 | 0.22-0.33 | 1.5-1.7 | Tin Plated | 4K |
| C35001-12RT | Brass | 0.3 | 22-20 | 0.33-0.5 | 1.7-2.6 | Tin Plated | 3K |
| C35001-13RT | Brass | 0.3 | 18-14 | 0.75-2.5 | 2.8-4.0 | Tin Plated | 2.5K |
| C35001-14RT | Brass | 0.3 | 20+20/20+18/18+18 | 0.5+0.5/0.5+0.75+0.75+0.75 | 2.6+2.6/2.6+2.8/2.8+2.8 | Tin Plated | 2.5K |
| C35001-11RT | Brass | 0.3 | 24-22 | 0.22-0.33 | 1.5-1.7 | Tin Plated | 4K |
| C35001-12PT | Brass | 0.3 | 22-20 | 0.33-0.5 | 1.7-2.6 | Tin Plated | 3K |
| C35001-13PT | Brass | 0.3 | 18-14 | 0.75-2.5 | 2.8-4.0 | Tin Plated | 2.5K |
| C35001-14PT | Brass | 0.3 | 20+20/20+18/18+18 | 0.5+0.5/0.5+0.75+0.75+0.75 | 2.6+2.6/2.6+2.8/2.8+2.8 | Tin Plated | 2.5K |
| C35001-11PT | Brass | 0.3 | 24-22 | 0.22-0.33 | 1.5-1.7 | Tin Plated | 4K |

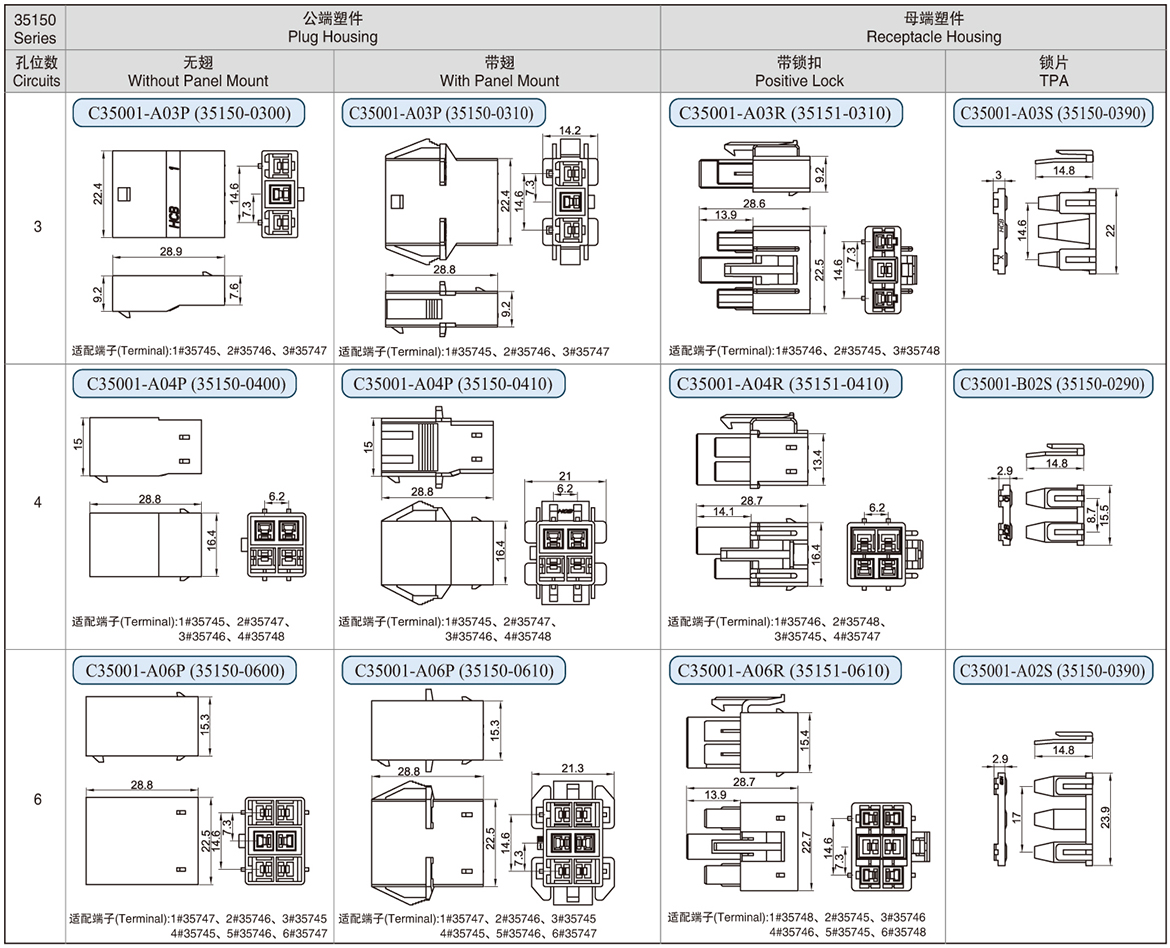

| Housing&TPA | Terminal Mating by Housing Circuits | ||||||||
| Receptacle Housing | Plus Housing | Receptacle Housing | Plus Housing | ||||||
| Circuits | Without Panel Mount | With Panel Mount | TPA | Positive Lock | TPA | Circuit No. | Terminal Series | Circuit No. | Terminal Series |
| 1 | 35150-0100 | - | 35150-0190 | 35151-0110 | 35150-0190 | 1 | 35745 | 1 | 35746 |
| 2 | 35150-0200 | 35150-0210 | 35150-0290 | 35151-0210 | 35150-0290 | 1 | 35745 | 1 | 35746 |
| 2 | 35745 | 2 | 35746 | ||||||
| 3 | 35150-0300 | 35150-0310 | 35150-0390 | 35151-0310 | 35150-0390 | 1 | 35745 | 1 | 35746 |
| 2 | 35746 | 2 | 35745 | ||||||
| 3 | 35747 | 3 | 35748 | ||||||
| 4 | 35150-0400 | 35150-0410 | 35150-0290 | 35151-0410 | 35150-0290 | 1 | 35745 | 1 | 35746 |
| 2 | 35747 | 2 | 35748 | ||||||
| 3 | 35746 | 3 | 35745 | ||||||
| 4 | 35748 | 4 | 35747 | ||||||
| 6 | 35150-0600 | 35150-0610 | 35150-0390 | 35151-0610 | 35150-0390 | 1 | 35747 | 1 | 35748 |
| 2 | 35746 | 2 | 35745 | ||||||
| 3 | 35745 | 3 | 35746 | ||||||
| 4 | 35745 | 4 | 35746 | ||||||
| 5 | 35746 | 5 | 35745 | ||||||
| 6 | 35747 | 6 | 35748 | ||||||

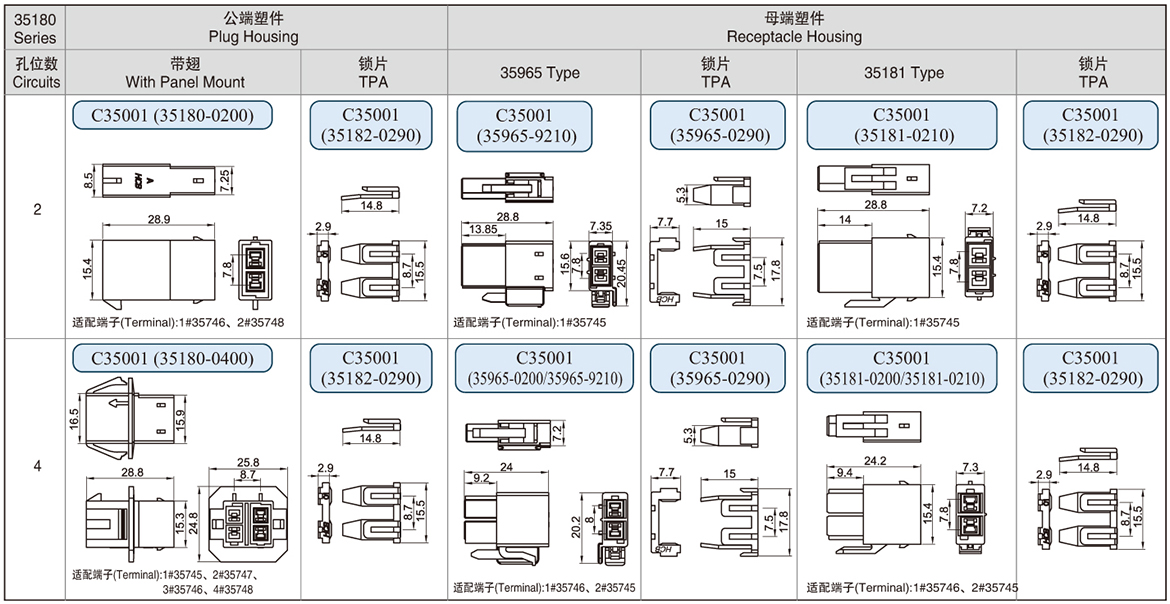

| Housing&TPA | Terminal Mating by Housing Circuits | |||||||||
| Receptacle Housing | Plus Housing | Receptacle Housing | Plus Housing | |||||||
| Circuits | With Panel Mount | TPA | 35965 Type | TPA | 35181 Type | TPA | Circuit No. | Terminal Series | Circuit No. | Terminal Series |
| 2 | 35180-0200 | 35182-0290 | 35965-9210 | 35965-0290 | 35181-0210 | 35182-0290 | 1 | 35746 |
35965-9210/ 35181-0210 |
35745 |
| 2 | 35748 | |||||||||
| 4 | 35180-0400 | 35182-0290 |
35965-0200/ 35965-9210 |
35965-0290 |
35181-0200/ 35181-0210 |
35182-0290 | 1 | 35745 |
35965-0200/ 35181-0200 |
35746 |
| 2 | 35747 | |||||||||
| 3 | 35746 |
35965-9210/ 35181-0210 |
35745 | |||||||
| 4 | 35478 | |||||||||
| 6 | 35180-0600 | 35182-0390 |
35965-0200/ 35965-9210/ 35965-0220 |
35965-0290 |
35181-0200/ 35181-0210/ 35181-0220 |
35182-0290 | 1 | 35747 |
35965-0220/ 35181-0220 |
35748 |
| 6 | ||||||||||
| 2 | 35746 |
35965-9210/ 35181-0210 |
35745 | |||||||
| 5 | ||||||||||
| 3 | 35745 |
35965-0200/ 35181-0200 |
35746 | |||||||
| 4 | ||||||||||

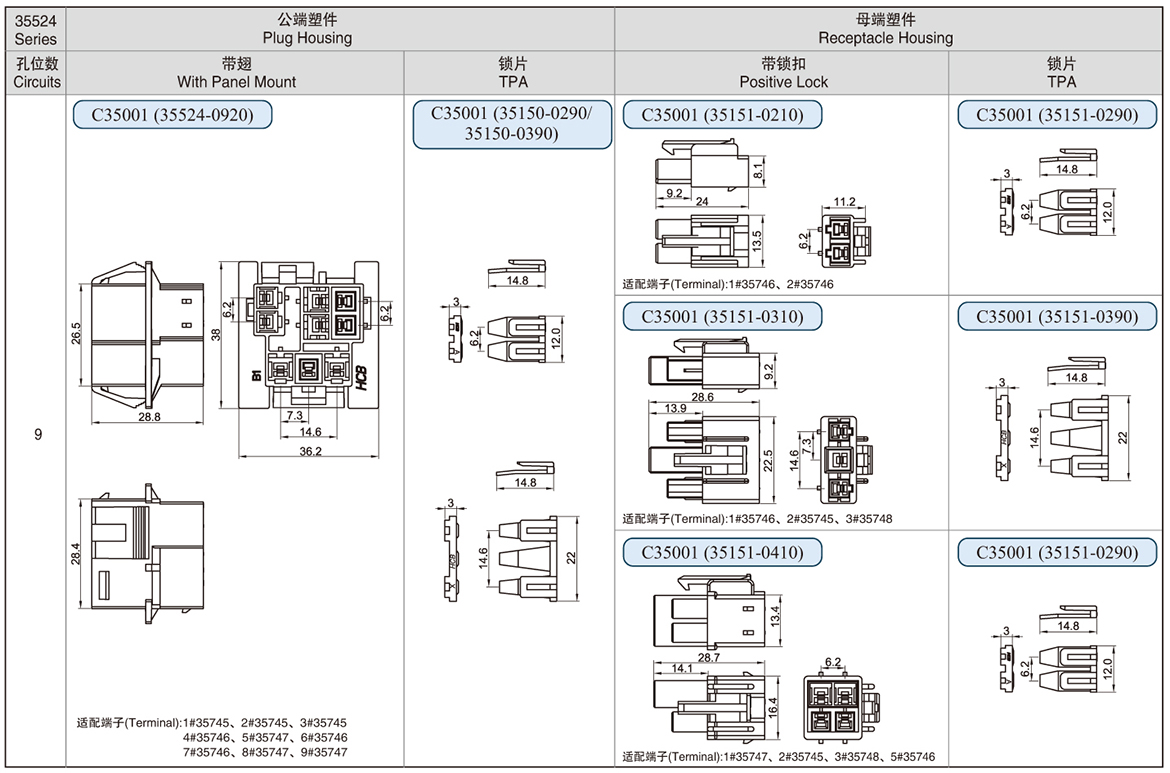

| Housing&TPA | Terminal Mating by Housing Circuits | |||||||
| Recetacle Housing | Plug Housing | Recetacle Housing | Plug Housing | |||||
| Circuits | With Panel Mount | TPA | Positive Lock | TPA | Circuit No. | Terminal Series | Circuit No. | Terminal Series |
| 9 | 35524-0920 |
35150-0290/ 35150-0390 |
35151-0210 | 35151-0290 | 1 | 35745 | 1 | 35746 |
| 2 | 35745 | 2 | 35746 | |||||
| 35151-0310 | 35151-0390 | 3 | 35745 | 1 | 35746 | |||
| 4 | 35746 | 2 | 35745 | |||||
| 5 | 35747 | 3 | 35748 | |||||
| 35151-0410 | 35151-0290 | 6 | 35746 | 4 | 35747 | |||
| 7 | 35746 | 3 | 35745 | |||||
| 8 | 35747 | 2 | 35748 | |||||
| 9 | 35747 | 1 | 35746 | |||||
| Prat No. | Material | Q'ty/bag |
| C35001-A01P | PA66 | 1k |
| C35001-A02P | 1k | |
| C35001-B02P | 1k | |
| C35001-C02P | 1k | |
| C35001-D02P | 1k | |
| C35001-E02P | 1k | |
| C35001-F02P | 1k | |
| C35001-G02P | 1k | |
| C35001-H02P | 1k | |
| C35001-A03P | 500 | |
| C35001-A04P | 500 | |
| C35001-A06P | 200 |
| Prat No. | Material | Q'ty/bag |
| C35001-A01RF | PA66 | 1K |
| C35001-A02R | 1K | |
| C35001-A02RF | 1K | |
| C35001-B02R | 1K | |
| C35001-A03R | 500 | |
| C35001-A03RF | 500 | |
| C35001-A04R | 500 | |
| C35001-A04RF | 500 | |
| C35001-B02R | 500 | |
| C35001-A06R | 200 | |
| C35001-A06RF | 200 | |
| C35001-B06R | 200 | |
| C35001-A09R | 100 |
| Prat No. | Material | Q'ty/bag |
| C35001-A01S | PA66 | 2K |
| C35001-A02S | 2K | |
| C35001-B02S | 2K | |
| C35001-B02RS | 2K | |
| C35001-A03S | 2K | |
| C35001-B03RS | 2K |
