Update time:2019-06-25 13:49
Specifications:
Number of positions:2
Applicable wires:22～18AWG
Temperature range:-25℃～85℃
Voltage rating:250V AC,DC Max.
Current rating:5A AC,DC Max.
Current resistance:≤15M Ω
Insulation resistance:≥1000M Ω
Withstanding voltage:500V AC/minute
*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.
Terminal
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||

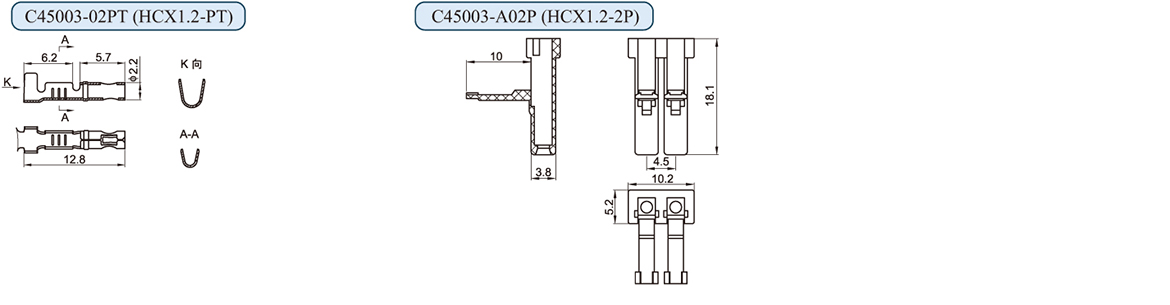

| C45003-02PT | Phosphor Bronze | 0.25 | 22-18 | 0.33-0.75 | 1.7-2.8 | Tin Plated | 4.5K |
| Prat No. | Material | Q'ty/bag |
| C45003-A02P | PA66 | 1K |
| Prat No. | Material | Thickness | Applicable Wires |
Wire insulation O.D. mm |
Plating | Q'ty/reel | |
| AWG# | mm² | ||||||
| C80001-01PT | Phosphor Bronze | 0.25 | 24-22 | 0.22-0.33 | 1.5-1.7 | Tin Plated | 3.5K |
| C80001-02PT | Phosphor Bronze | 0.25 | 22-18 | 0.33-0.75 | 1.7-2.8 | Tin Plated | 3.5K |
| C80001-12PT | Phosphor Bronze | 0.25 | 22-18 | 0.33-0.75 | 1.7-2.8 | Tin Plated | 3.5K |
| C80001-22PT | Phosphor Bronze | 0.25 | 22-18 | 0.33-0.75 | 1.7-2.8 | Tin Plated | 3.5K |
| Number of positions: | 2 |
| Applicable wires: | 22～18AWG |
| Temperature range: | -25℃～85℃ |
| (including temperature rise in applying electrical current) | |
| Voltage rating: | 250V AC,DC Max. |
| Current rating: | 7A AC,DC Max. |
| Current resistance: | ≤10M Ω |
| Insulation resistance: | ≥1000M Ω |
| Withstanding voltage: | 1500V AC/minute |
| *Compliant with RoHS. | |

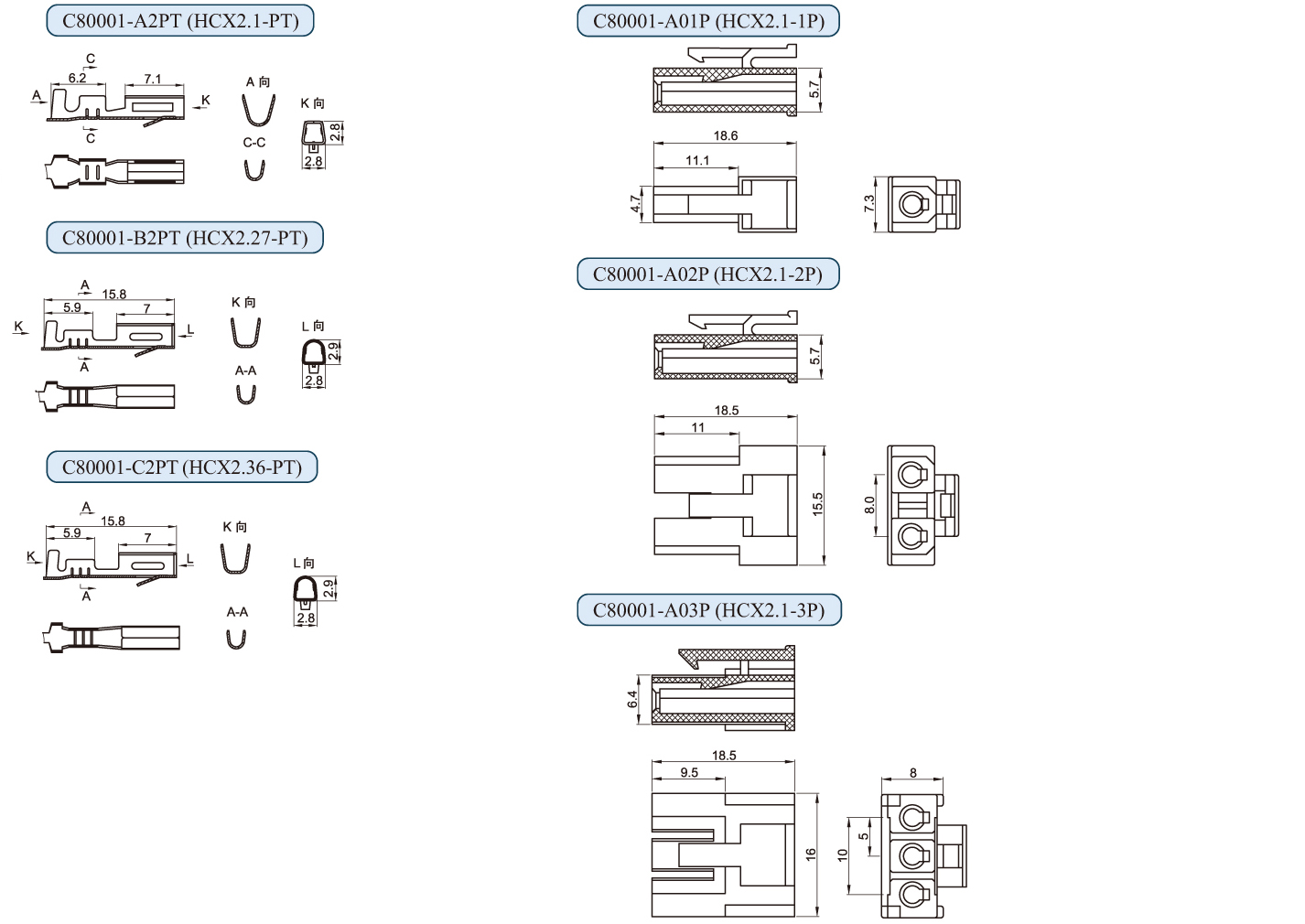

| Prat No. | Material | Q'ty/bag |
| C80001-A01P | PA66 | 1K |
| C80001-A02P | 500 | |
| C80001-A03P | 500 | |
| C80001-B02P | 500 | |
| C80001-B03P | 500 | |
| C80001-A02A | PA66/Brass | 500 |
