110(2.8) Terminal Series


Update time:2019-05-14 09:19

Specifications:

nothing

*Temperature range:(including temperature rise in applying electrical current)
*Compliant with RoHS.

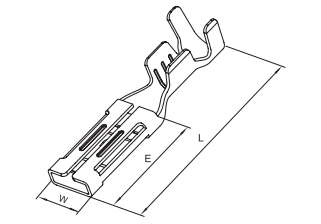

■2.8  110 Premier type


    Part No.    Material   Thickness
Applicable wires
 		  Wire insulation
O.D. mm		   Dimensions（mm）

Plating

 Mating Tab Q'ty/reel
AWG# mm²

W

 L E
 TP1101-0025 Phosphor Bronze 0.25 24-20 0.22-0.5 2.1-2.6  3.80  15.60  6.20    Tin-Plated   0.5 10K
TP1101-0035 Phosphor Bronze 0.25 20-16 0.5-1.25 2.6-3.5 3.80 16.00 6.20   Tin-Plated   0.5 5K
TP1101-0045 Phosphor Bronze 0.25 16-14 1.25-2.5 3.5-4.0 3.80 14.20 6.20   Tin-Plated   0.5 5K
TP1101-0028 Phosphor Bronze 0.25 24-20 0.22-0.5 2.1-2.6 3.80 15.60 6.20   Tin-Plated   0.8 10K
TP1101-0038 Phosphor Bronze 0.25 20-16 0.5-1.25 2.6-3.5 3.80 16.00 6.20 Tin-Plated 0.8 5K
TP1101-0048 Phosphor Bronze 0.25 16-14 1.25-2.5 3.5-4.0 3.80 14.20 6.20 Tin-Plated 0.8 5K

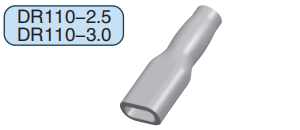

Applicable sleeve



Part No. Material Q'ty/reel Part No. Material Q'ty/reel Part No. Material Q'ty/reel
H110P-0101 PA66 1K H110P-0202 PA66 1K H110S-0101 PVC 2K
H110P-0201 PA66 1K H110S-0201 PVC 2K

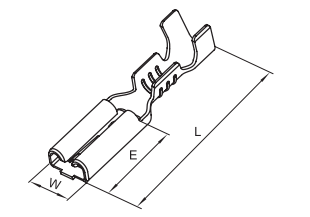

■2.8  110 Premier type with locking lance

    Part No.    Material   Thickness
Applicable wires
 		  Wire insulation
O.D. mm		   Dimensions（mm）

Plating

 Mating Tab Q'ty/reel
AWG# mm²

W

 L E
TP1101-2025 Phosphor Bronze 0.25 20-18 0.5-0.75 2.6-2.8 3.80 15.90 6.10 Tin-Plated 0.5 3.5K
TP1101-2125 Phosphor Bronze 0.25 20-18 0.5-0.75 2.6-2.8 3.80 15.60 6.60 Tin-Plated 0.5 10K
TP1101-2115 Phosphor Bronze 0.25 24-22 0.22-0.33 1.5-1.7 3.80 15.60 6.60 Tin-Plated 0.5 10K



Applicable sleeve




Part No. Material Q'ty/reel Part No. Material Q'ty/reel Part No. Material Q'ty/reel
H110P-0302 PA66 1K H110P-0402 PA66 1K H110P-0503 PA66 1K

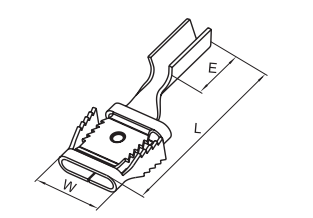

■2.8  110 P/S female type

 Part No.    Material   Thickness
Applicable wires
 		  Wire insulation
O.D. mm		   Dimensions（mm）

Plating

 Mating Tab Q'ty/reel
AWG# mm²

W

 L E




TP1101-7025




 Phosphor Bronze 0.25 22-20 0.33-0.5 1.7-2.6  3.70  15.50  7.60    Tin-Plated   0.5 15K




Applicable sleeve

Part No. Material Q'ty/reel Part No. Material Q'ty/reel
H110P-0603 PA66 500 H110P-0703 PA66 1K

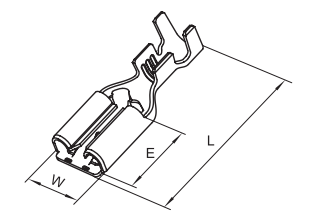

■2.8  110Premier type with positive lock

Part No. Material Thickness Applicable wires Wire insulation O.D. mm Dimensions(mm) Plating Mating Tab Q'ty/reel
AWG# mm2 W L E
 TP1102-0025 Phosphor Bronze 0.25 22-18 0.35-0.75 1.7-2.8 3.90 15.50 6.00 Tin-Plated 0.5 10K
TP1102-0028 Phosphor Bronze 0.25 22-18 0.33-0.75 1.7-2.8 3.90 15.50 6.00 Tin-Plated 0.8 10K



Applicable sleeve
Part No. Material Q'ty/reel
H110S-0101 PVC 2K
H110S-0201 PVC 2K

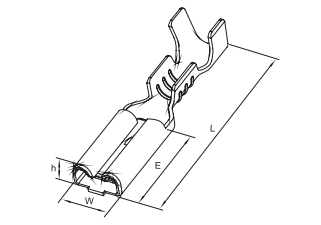

■2.8 110 Flag type

               Part No. Material Thickness Applicable wires Wire insulation
O.D. mm		   Dimensions(mm)        Plating Mating Tab Q'ty/reel
AWG# mm2     W         L        E
TP1104-0025 Phosphor Bronze 0.30 22-18 0.33-0.75 1.7-2.8 3.70 10.80 5.10 Tin-Plated 0.5 3K
TP1104-0028 Phosphor Bronze 0.30 22-18 0.33-0.75 1.7-2.8 3.70 10.80 5.10 Tin-Plated 0.8 3K
TP1104-0125 Phosphor Bronze 0.25 22-18 0.33-0.75 1.7-2.8 3.80 13.10 6.50 Tin-Plated 0.5 3K
TP1104-0128 Phosphor Bronze 0.25 22-18 0.33-0.75 1.7-2.8 3.80 13.10 6.50 Tin-Plated 0.8 3K



Applicable sleeve
Part No. Material Q'ty/reel
H110S-0501 PVC 2K
H110S-0601 PVC 2K

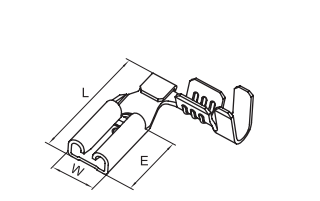

■Other type

                  Part No. Material Thickness Applicable wires Wire insulation
O.D. mm		 Dimensions(mm) Plating Mating Tab Q'ty/reel
AWG# mm2 W L E

TP1104-7128

 Phosphor Bronze 0.30 22-20 0.33-0.5 1.7-2.6 3.10 14.00 6.00 Acid Pickling 0.8 5K
